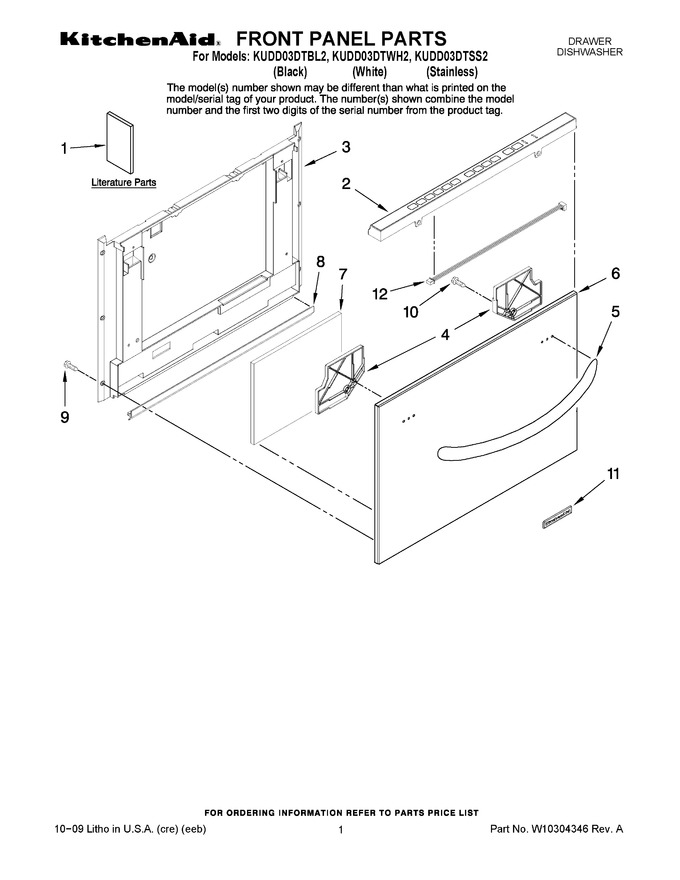

01 - Front Panel Parts


02 - Tub Parts


03 - Wash System Parts


04 - Upper And Lower Dishrack Parts


05 - Frame And Lid Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10275772		Energy Guide		Appelez-nous	-
1	W10216167		Instructions, Installation		Appelez-nous	-
2	W10117977		Control Panel (includes User Interface) (black)				$ 349.50
3	W10117987		Intermediate Panel (upper)		Appelez-nous	-
3	W10117988		Intermediate Panel (lower)				$ 200.76
4	W10117966		Anchor Panel		Appelez-nous	-
5	9761573WH		Handle (white)				$ 79.22
5	9761573SS		Handle (stainless)		Appelez-nous	-
5	9761573BL		Handle (black)		Appelez-nous	-
6	W10118027		Panel, Drawer (upper) (nameplate Not Included) (white)		Appelez-nous	-
6	W10117956		Panel, Drawer (lower) (also Order Item 11) (stainless)				$ 170.40
6	W10118028		Panel, Drawer (lower) (also Order Item 11) (white)		Appelez-nous	-
6	W10117953		Panel, Drawer (upper) (nameplate Not Included) (biscuit)				$ 183.90
6	W10117955		Panel, Drawer (lower) (also Order Item 11) (black)		Appelez-nous	-
6	W10117952		Panel, Drawer (upper) (nameplate Not Included) (black)		Appelez-nous	-
7	W10117965		Pad, Eps		Appelez-nous	-
8	99003716		Trim, Toe Kick		Appelez-nous	-
9	Y912620		Screw				$ 5.48
10	WPW10001180		Screw   (Replaces: 99003156)				$ 7.23
11	8304603SS		Nameplate (stainless)				$ 51.11
11	8304603WH		Nameplate (white)				$ 51.41
11	8304603BL		Nameplate (black)				$ 51.41
12	W10117969		Harness, User Interface				$ 206.56
