SELECT A DIAGRAM

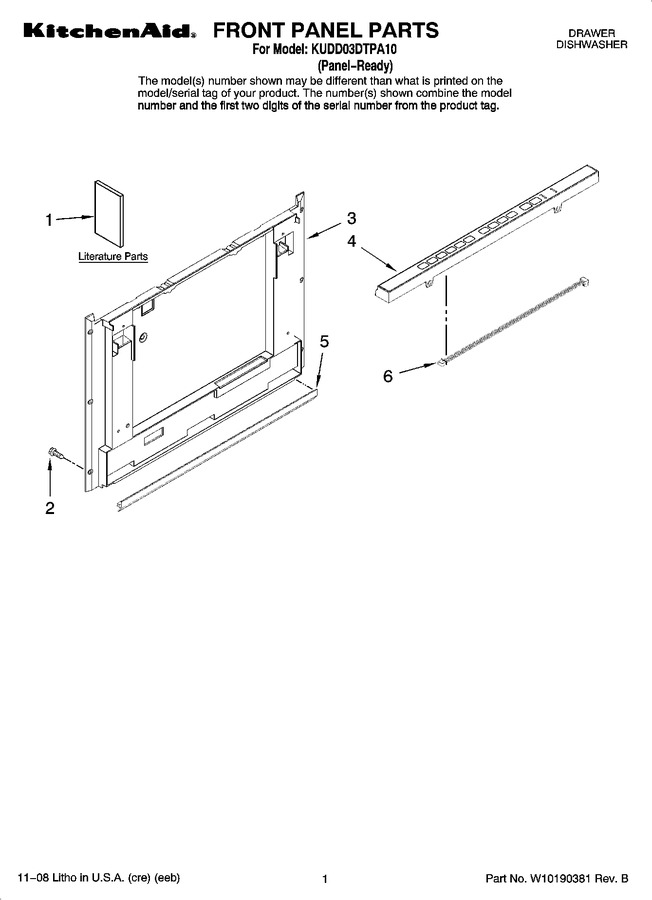

01 - Front Panel Parts


02 - Tub Parts


03 - Wash System Parts


04 - Upper And Lower Dishrack Parts


05 - Frame And Lid Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10118037		Instructions, Installation		Appelez-nous	-
1	W10155587		Energy Guide		Appelez-nous	-
2	Y912620		Screw				$ 5.48
3	W10117988		Intermediate Panel (lower)				$ 200.76
3	W10117987		Intermediate Panel (upper)		Appelez-nous	-
4	W10117977		Control Panel (includes User Interface)				$ 349.50
5	99003716		Trim, Toe Kick		Appelez-nous	-
6	W10117969		Harness, User Interface				$ 206.56

    View Diagram in Separate Window       Print Part List
