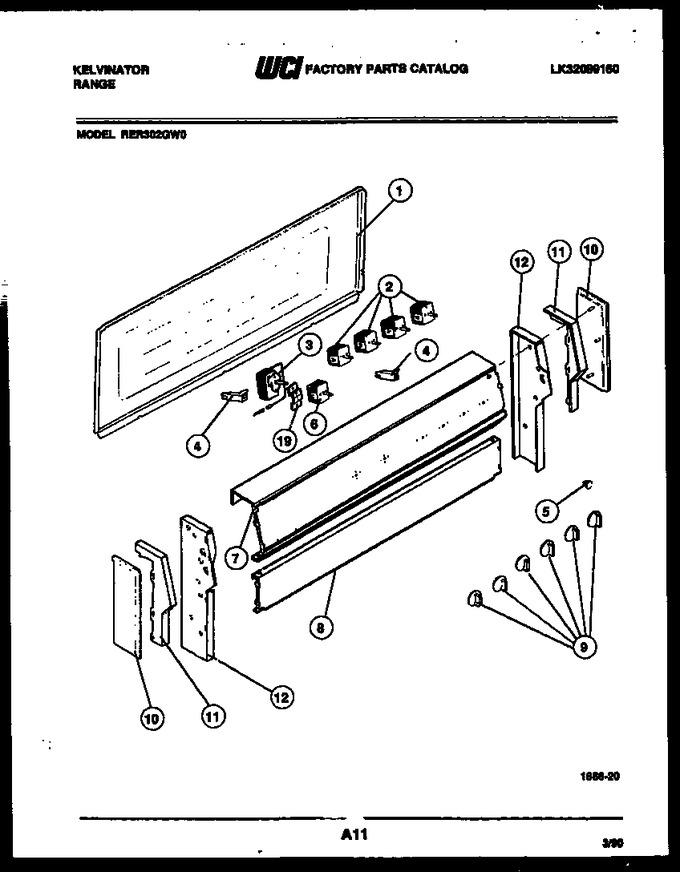

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017529 | Cover-wire |
|
- | |||||
| 2 | 3051540 | Switch S/u Sm. (3) |
|
- | |||||
| 3 | 08005306 | Thermostat |
|
- | |||||
| 4 | 08015930 | Signal Light-s/u |
|
- | |||||
| 5 | K5139002 | Lens - Signal Light (2) |
|
- | |||||
| 6 | 08016480 | Switch - Oven Select |
|
- | |||||
| 7 | 5303207451 | Panel-backguard |
|
- | |||||
| 8 | 3201461 | Panel - Backsplash (almond) |
|
- | |||||
| 9 | 3051698 | Knob-s/u (6) |
|
- | |||||
| 10 | 3051675 | Body-end Cap-l.h. |
|
- | |||||
| 11 | K5128102 | Trim End Cap, Lh |
|
- | |||||
| 12 | 3051670 | Support-backgrd Rh |
|
- | |||||
| 19 | 08003252 | Bracket - Thermostat |
|
- | |||||
| 10A | 3051674 | Body-end Cap-r.h. |
|
- | |||||
| 11A | K5128101 | Trim-end Cap Rh |
|
- | |||||
| 12A | 3051671 | Support-backgrd Lh |
|
- | |||||
| 2A | K0001313767 | Switch-s/u Lg (1) |
|
- | |||||
| 4A | 3051678 | Signal Light-oven |
|
- |
