01 - Front Panel Parts


02 - Tub Parts


03 - Wash System Parts


04 - Upper And Lower Dishrack Parts


05 - Frame And Lid Parts


06 - Accessory Parts

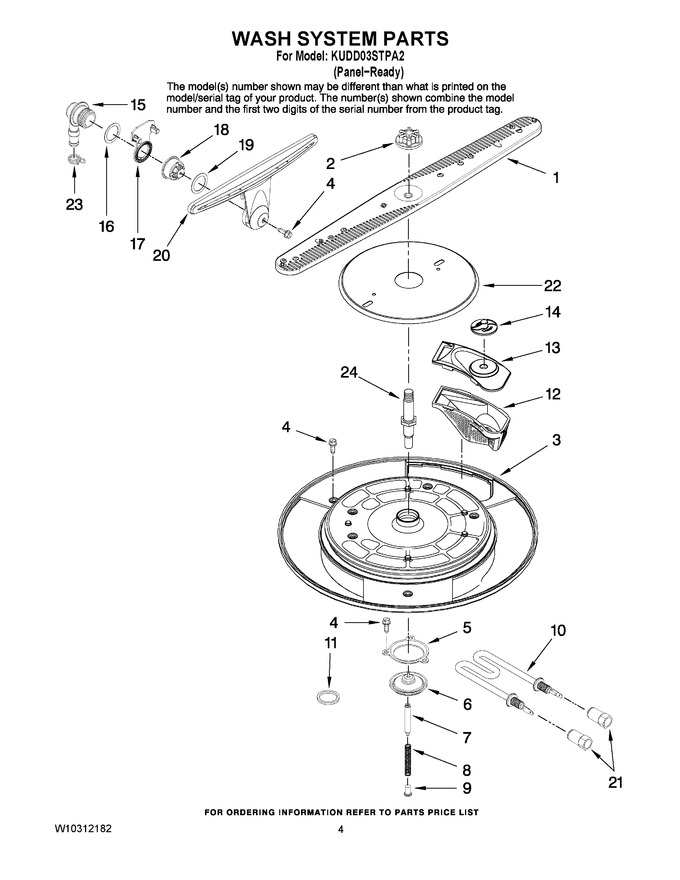

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10118042		Wash Arm Assembly		Appelez-nous	-
2	99003697		Cap, Wash Arm		Appelez-nous	-
3	W10190556		Filter Flowplate Assembly		Appelez-nous	-
4	Y6918536		Screw		Appelez-nous	-
5	99003720		Compression Ring, Fine Drain		Appelez-nous	-
6	99003692		Seal, Fine Drain				$ 12.72
7	99003772		Armature, Fine Drain				$ 35.50
8	99003774		Spring, Fine Drain				$ 48.98
9	6-920340		Shaft, Fine Drain   (Replaces: 99003775)				$ 9.05
10	99003625		Heater				$ 49.75
11	Y6920320		O-ring (epdm)		Appelez-nous	-
12	99003777		Coarse Cup, Lower		Appelez-nous	-
13	99003776		Coarse Cup, Upper				$ 25.43
14	99003778		Coarse Cup Cap				$ 9.75
15	Y6920170		Inlet, Upper (manifold)		Appelez-nous	-
16	910069		Washer				$ 35.86
17	Y6920354		Bracket, Upper Manifold Mtg		Appelez-nous	-
18	Y6920171		Cap, Manifold Inlet		Appelez-nous	-
19	99002857		O-ring				$ 5.83
20	W10162673		Manifold, Upper Assembly   (Replaces: 99003683)				$ 150.41
21	WP6-920168		Nut, Heater   (Replaces: 99003771)				$ 2.66
22	99003704		Shield, Fine Filter				$ 52.54
23	WP596669		Clamp, Manifold   (Replaces: 596669)			Immediately	$ 7.56
24	99003697		Pivot, Wash Arm		Appelez-nous	-
