SELECT A DIAGRAM

01 - Front Panel Parts


02 - Tub Parts


03 - Wash System Parts


04 - Upper And Lower Dishrack Parts

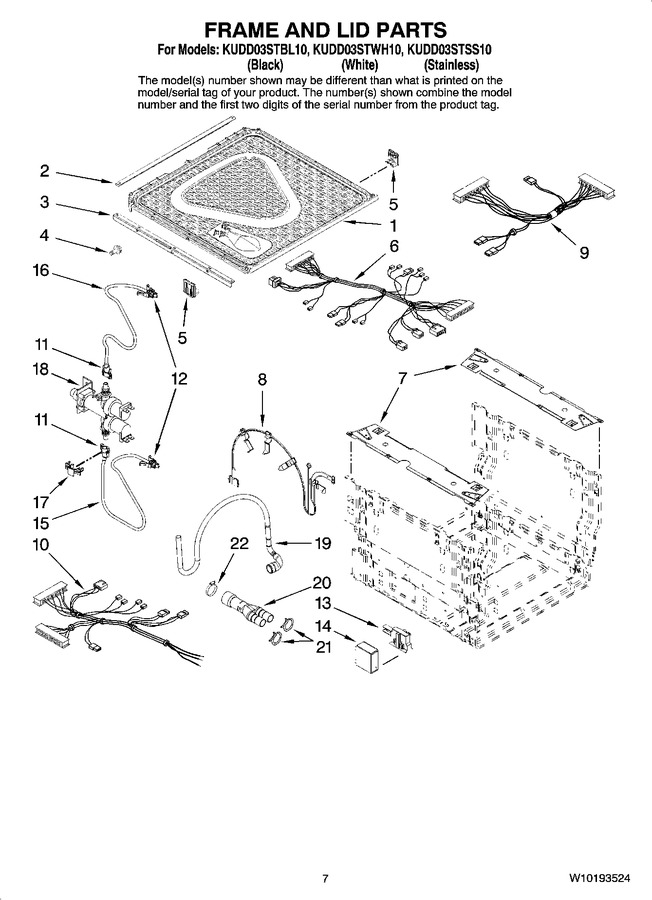

05 - Frame And Lid Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP99003677		Lid Assembly (seal Included)   (Replaces: 99003677)				$ 324.15
2	Y6920305		Bracket, Lid (rear)		Appelez-nous	-
3	99003722		Bracket, Lid Assy. (side)		Appelez-nous	-
4	99003724		Roller, Lid Pin				$ 11.20
5	99003726		Lid Slider Assy. (left Hand)				$ 52.63
5	99003725		Lid Slider Assy. (right Hand)				$ 76.87
6	99003706		Harness, Drawer				$ 182.02
7	W10188309		Brace, Top Side (undercounter Mounting Bracket)		Appelez-nous	-
8	WPW10166505		Retainer, Flex   (Replaces: W10166505)				$ 28.76
9	99003710		Harness, Upper				$ 207.52
10	99003709		Harness, Lower				$ 100.17
11	W10188315		Clip, Fill Valve		Appelez-nous	-
12	W10188316		Clip, Lid		Appelez-nous	-
13	99003732		Base, Utility Box		Appelez-nous	-
14	99003731		Cover, Utility Box		Appelez-nous	-
15	99003766		Hose, Fill (lower)				$ 68.49
16	WP99003765		Hose, Fill (upper)   (Replaces: 99003765)				$ 62.45
17	W10189242		Retainer, Valve End				$ 8.16
18	99003606		Valve, Water		Appelez-nous	-
19	99003597		Hose, Drain				$ 54.71
20	Y6919906		Y- Connector				$ 36.78
21	WP616099		Clamp   (Replaces: 99003633)			Immediately	$ 7.03
22	WP596669		Clamp   (Replaces: 99003635)			Immediately	$ 7.56

    View Diagram in Separate Window       Print Part List
