Diagram # Part Number Description Series Availability Ships Price Add to Cart

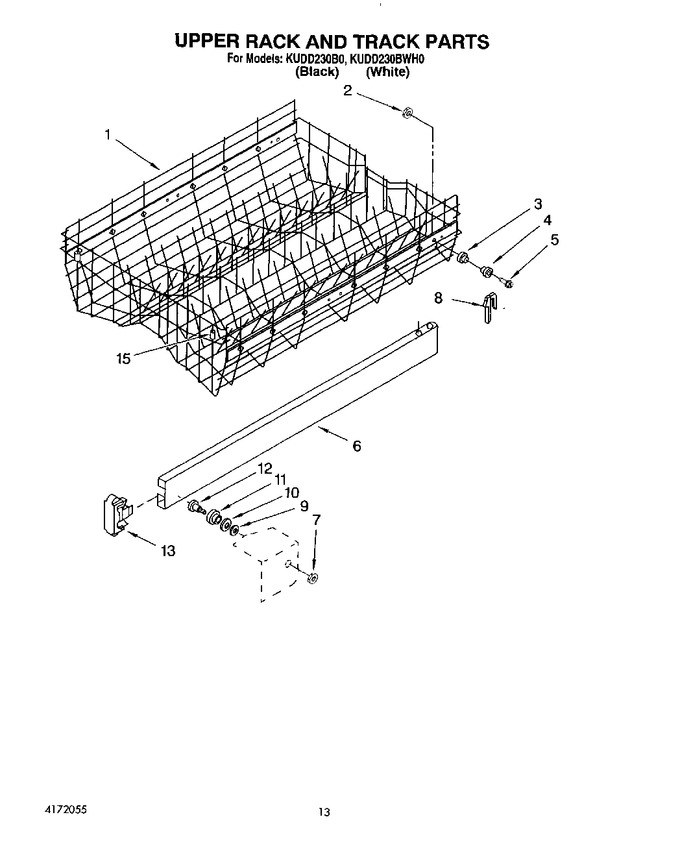

1 9741953 Upper Rack Assembly (includes Items 2, 3, 4, 5 & 15) Appelez-nous -
2 4161226 Nut, Roller Appelez-nous -
3 9741972 Bearing & Spacer, Rack Roller Appelez-nous -
4 9741816 Roller, Upper Rack Track (4) Appelez-nous -
5 9741823 Screw Appelez-nous -
6 3369071 Track, Rack Appelez-nous -
7 718829 Nut, Lock Appelez-nous -
8 3369046 Stop, Track (2) Appelez-nous -
9 9741062 Washer Appelez-nous -
10 718817 Washer, Cup Appelez-nous -
11 300844 Roller, Rack Track Appelez-nous -
12 9741951 Screw, Track Roller Appelez-nous -
13 300845 Endcap (2) Special Order $ 7.63

15 4162048 Bumper, Upper Rack Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
