02 - Backguard Parts
03 - Cooktop Parts
04 - Broiler Parts
05 - Door Parts
06 - Drawer Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

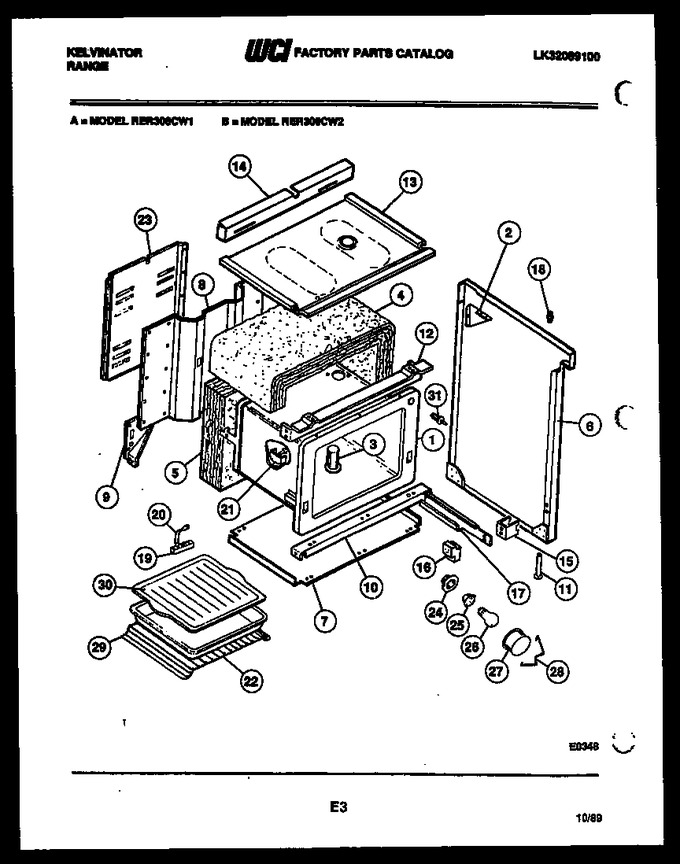

| 1 | K1325538 | Body-oven |
|
- | |||||
| 2 | K1315230 | Gusset, Backgrd (2) |
|
- | |||||
| 3 | 08012541 | Tube-oven Vent |
|
- | |||||
| 4 | 3051521 | Insulation - Oven Wrap |
|
- | |||||
| 5 | 3051630 | Insulation-oven Back |
|
- | |||||
| 6 | K5024604 | Panel-end Lh Almd |
|
- | |||||
| 6 | K5024603 | Panel-end Rh Almd |
|
- | |||||
| 7 | 3017934 | Panel-bottom |
|
- | |||||
| 8 | 3017535 | Panel-back |
|
- | |||||
| 9 | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 9 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 10 | K1315108 | Channel-oven Sprt |
|
- | |||||
| 11 | K1322905 | Screw-levelling (4) |
|
- | |||||
| 12 | K1325635 | Channel-oven Sprt |
|
- | |||||
| 13 | 08012542 | Panel - Subtop |
|
- | |||||
| 14 | 3017633 | Shield-wire |
|
- | |||||
| 15 | K1324860 | Spacer-drawer Guide (2) |
|
- | |||||
| 16 | K1315216 | Guide-front (2) |
|
- | |||||
| 17 | 08015746 | Rail - Drawer Rh |
|
- | |||||
| 17 | 08015747 | Rail - Drawer Lh |
|
- | |||||
| 18 | K5106901 | Bumper (4) |
|
- | |||||
| 19 | K1189558 | Terminal, Block |
|
- | |||||
| 20 | K1145190 | Strap-grounding |
|
- | |||||
| 21 | K1311369 | Bracket, Thermo Bulb |
|
- | |||||
| 22 | 3131973 | Rack-oven |
|
- | |||||
| 23 | 3051856 | Cover - Wire |
|
- | |||||
| 24 | K1325530 | Cup, Oven Light |
|
- | |||||
| 25 | K1325527 | Receptacle |
|
- | |||||
| 26 | 3051082 | Bulb |
|
- | |||||
| 27 | 3051514 | Lens |
|
- | |||||
| 28 | 08011087 | Retainer - Lens |
|
- | |||||
| 29 | K1313048 | Pan, Broiler |
|
- | |||||
| 30 | K1313049 | Insert-broiler Pan |
|
- | |||||
| 31 | 3051531 | Switch-oven Light |
|
- |
