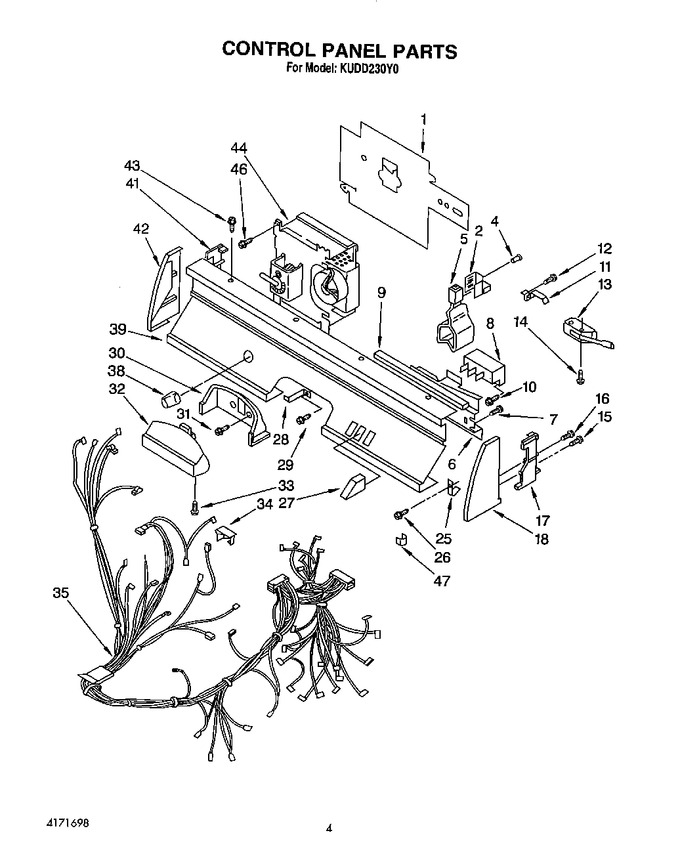

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4171130		Insulator, Latch		Appelez-nous	-
2	4171120		Anchor, Cancel Spring		Appelez-nous	-
4	4159169		Rivet		Appelez-nous	-
5	4163257		Spring, Switch Cancel				$ 25.39
6	4163256		Bracket, Program Switch		Appelez-nous	-
7	4159373		Screw, 8-18 X 1/2		Appelez-nous	-
8	9741144		Switch, Program		Appelez-nous	-
9	9740767		Seal, Moisture		Appelez-nous	-
10	4159432		Screw, 6-32 X 3/8		Appelez-nous	-
11	4163571		Spring, Door Interlock				$ 5.51
12	WP693304		Screw, 10-16 X 1/2   (Replaces: 4159390)				$ 7.04
13	4160658		Switch, Interlock		Appelez-nous	-
14	W11596033		Screw (2)   (Replaces: 9741052)				$ 12.20
15	4163263		Screw & Washer Assembly		Appelez-nous	-
16	WP681249		Screw, 8-32 X 7/8   (Replaces: 4171126)			Immediately	$ 7.07
17	4171124		Spacer, End Cap (r.h.)		Appelez-nous	-
18	4151575		End Cap (r.h.)		Appelez-nous	-
25	4162043		Clip, Grounding (front Panel)		Appelez-nous	-
26	4159373		Screw, 8-18 X 1/2		Appelez-nous	-
27	4163240		Button, Program Switch (3)		Appelez-nous	-
28	4163245		Bracket, Panel Reinforcement		Appelez-nous	-
29	4159446		Screw, 6-20 X 3/8		Appelez-nous	-
30	4163255		Trim, Handle		Appelez-nous	-
31	WP912618		Screw, 8-32 X 1/2   (Replaces: 4159335)				$ 6.98
32	4163243		Handle, Latch		Appelez-nous	-
33	9741328		Screw, 10-32 X 5/8		Appelez-nous	-
34	4163372		Clip, Harness Guide		Appelez-nous	-
35	9741041		Wiring Harness (main)		Appelez-nous	-
35	4159349		Screw, 8-18 X 3/8		Appelez-nous	-
38	4171119		Knob, Timer		Appelez-nous	-
39	9741133		Control Panel		Appelez-nous	-
41	4171125		Spacer, End Cap (l.h.)		Appelez-nous	-
42	4151576		End Cap (l.h.)		Appelez-nous	-
43	4159408		Screw, 6-20 X 3/8		Appelez-nous	-
44	9740995		Timer Assembly (115 V., 60 Hz.)		Appelez-nous	-
46	4159373		Screw, 8-18 X 1/2		Appelez-nous	-
47	4171127		Clip, Endcap (2)		Appelez-nous	-
	LIT9741381		Tag, Energy Fact		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	675506		Tine Tip Repair Kit (blue-enough For Two Complete Dishracks)		Appelez-nous	-
	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 40.85
	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
	285368		Platinum (uncut)		Appelez-nous	-
	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	261891		Golden Harvest (uncut)		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	350942		Primer (white)   (Replaces: 206922)				$ 80.69
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Toast		Appelez-nous	-
	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
	261890		Golden Harvest		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
	4171635		Almond (l.h.)		Appelez-nous	-
	4171476		Adjustable Kickboard Kit		Appelez-nous	-
	4171634		White (l.h.)		Appelez-nous	-
	4171633		Almond (r.h.)		Appelez-nous	-
	4171632		White (r.h.)		Appelez-nous	-
	4162841		Wood Top Kit		Appelez-nous	-
	9741087		Drain Hose Assembly		Appelez-nous	-
	LIT4171698		Parts List		Appelez-nous	-
	LIT9741252		Guide, Use & Care		Appelez-nous	-
	LIT9741036		Sheet, Tech (service Information)		Appelez-nous	-
	LIT9741183		Instructions, Installation		Appelez-nous	-
	4171179		Insulation Kit (kit Includes Tub, Kickboard, And Lower Panel Insulation)		Appelez-nous	-
