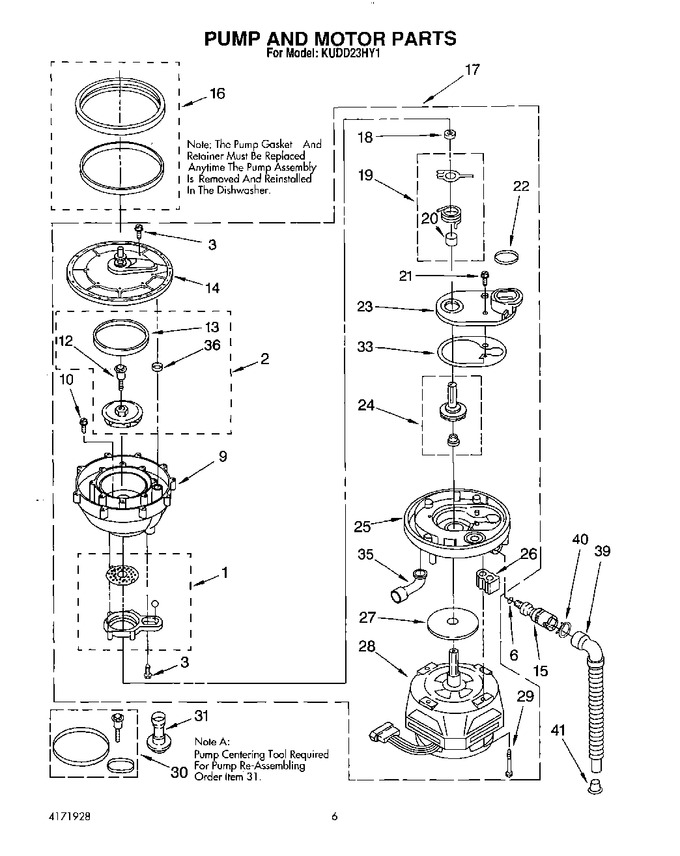

04 - Pump And Motor


05 - Lower Washarm And Strainer


06 - Heater


07 - Fill And Overfill


08 - Upper Wash And Rinse


09 - Frame And Tank


10 - Upper Rack And Track


11 - Lower Rack


12 - Door And Latch


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	675704		Inlet Base Assy. (also Order Item 30) See Note A.		Appelez-nous	-
2	675806		Impeller   (Replaces: 675705)			Immediately	$ 127.87
3	WP9741232		Screw, 8-18 (16)   (Replaces: 9741232)			Immediately	$ 4.56
6	95080		``o`` Ring		Appelez-nous	-
9	9740676		Box, Separator Collector (also Order Item 30) See Note A.		Appelez-nous	-
10	9741258		Screw, 8-18 (4)		Appelez-nous	-
12	WP3371152		Screw & Seal, 10-32 X 3/4   (Replaces: 3371152)				$ 7.61
13	WP302711		Seal, Pump Outlet   (Replaces: 9740677)				$ 34.17
14	9740683		Outlet, Pump (includes Item 13)		Appelez-nous	-
15	675238		Check Valve (includes Item 6)   (Replaces: 3369482)				$ 78.04
16	717000		Gasket, Pump				$ 78.98
17	9740665		Pump & Motor Assembly (includes Item 16)		Appelez-nous	-
18	302707		Bushing, Grind		Appelez-nous	-
19	675806		Chopper Kit (also Order Item 30) See Note A.   (Replaces: 302718)			Immediately	$ 127.87
20	302705		Sleeve, Drain Impeller		Appelez-nous	-
21	W11693756		Screw, 8-18   (Replaces: 9741321)			Immediately	$ 12.65
22	302704		Seal, Drain Cover				$ 7.40
23	302723		Cover, Drain (includes Item 33) (also Order Item 30) See Note A.		Appelez-nous	-
24	675806		Impeller, Drain Kit (also Order Item 30) See Note A.   (Replaces: 303539)			Immediately	$ 127.87
25	9740671		Base, Pump (includes Items 24 & 33) (also Order Item 30) See Note A.		Appelez-nous	-
26	3367197		Support, Pump Mounting (4)				$ 5.70
27	W10909679		Slinger (see Note A.)   (Replaces: 3368270)				$ 19.49
28	3369330		Motor (includes Items 24 & 27) (also Order Item 30) (for Electrical Connector Only, See Wiring Harne		Appelez-nous	-
29	3369331		Screw (4)		Appelez-nous	-
30	675703		Pump Seal Kit (includes Items 12, 13, 22 & 36)				$ 55.81
31	303918		Tool, Pump Centering				$ 38.41
33	WP9740674		Gasket, Drain Cover   (Replaces: 9740674)				$ 7.05
35	4161605		Connector, Overhead		Appelez-nous	-
36	WP9740678		Seal   (Replaces: 9740678)				$ 10.19
39	9741366		Tube, Drain				$ 48.25
40	WP285655		Clamp, Hose   (Replaces: 370445)			Immediately	$ 7.55
41	9741415		Cap, Drain		Appelez-nous	-
