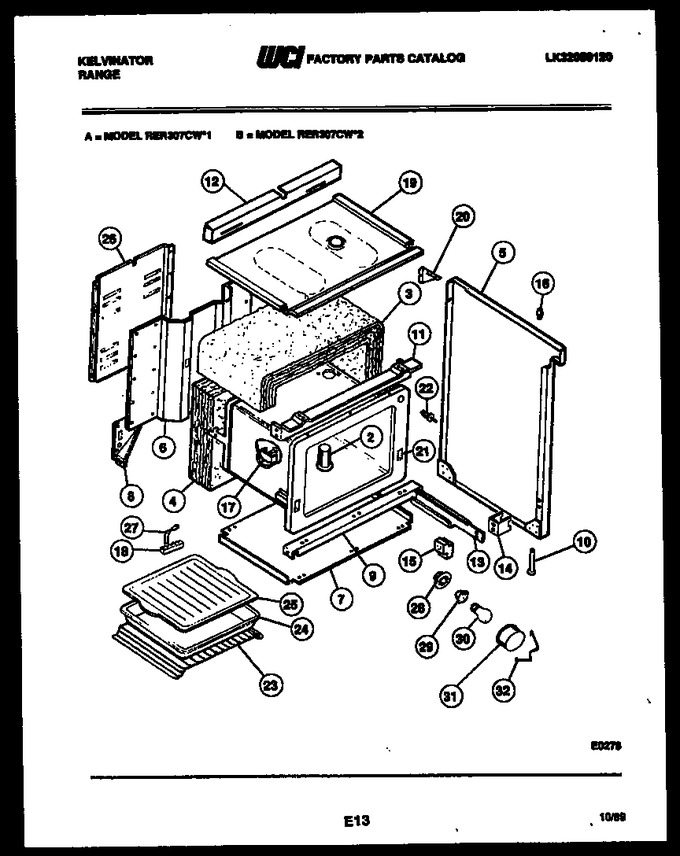

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08011051		Body - Drawer		Appelez-nous	-
2	08012541		Tube-oven Vent		Appelez-nous	-
2	K1325100		Panel-drawer Almd		Appelez-nous	-
3	3051521		Insulation - Oven Wrap		Appelez-nous	-
3	08014202		Handle - Drawer		Appelez-nous	-
4	3051630		Insulation-oven Back		Appelez-nous	-
5	K5024603		Panel-side Rh Almd		Appelez-nous	-
5	K1324091		Guide-drawer (2)		Appelez-nous	-
5	K5024604		Panel-side Lh Almd		Appelez-nous	-
6	3017535		Back - Range		Appelez-nous	-
7	3203574		Panel - Bottom		Appelez-nous	-
8	3017481		Gusset-rear, Rh		Appelez-nous	-
8	3017482		Gusset-rear, Lh		Appelez-nous	-
9	3200927		Channel - Oven Sprt		Appelez-nous	-
10	3205294		Screw - Leveling (4)		Appelez-nous	-
11	3200926		Channel-oven Sprt.		Appelez-nous	-
12	3017633		Shield-wire		Appelez-nous	-
13	3051652		Rail, Drawer Lh		Appelez-nous	-
13	08015746		Rail - Drawer Rh		Appelez-nous	-
14	K1324860		Spacer-drwr Rail (2)		Appelez-nous	-
15	K1315216		Glide-drwt Fr (2)		Appelez-nous	-
16	K5106901		Bumper-cooktop (4)		Appelez-nous	-
17	K1311369		Bracket-thermo Bulb (2)		Appelez-nous	-
18	K1189558		Block, Terminal		Appelez-nous	-
19	08012542		Panel - Subtop		Appelez-nous	-
20	K1315230		Gusset, Backgrd (2)		Appelez-nous	-
21	3204603		Liner - Oven		Appelez-nous	-
22	K5294301		Switch, Oven Light		Appelez-nous	-
23	3131973		Rack-oven		Appelez-nous	-
24	3205232		Pan, Broiler		Appelez-nous	-
25	3205234		Grill - Broiler		Appelez-nous	-
26	3051856		Wire Cover		Appelez-nous	-
27	K1145190		Strap-ground		Appelez-nous	-
28	K1325530		Cup, Oven Light		Appelez-nous	-
29	K1325527		Receptacle-oven Light		Appelez-nous	-
30	3013071		Bulb		Appelez-nous	-
31	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 15.61
32	08011087		Retainer - Lens		Appelez-nous	-
*10579	3934063		Anti-tip Kit		Appelez-nous	-
