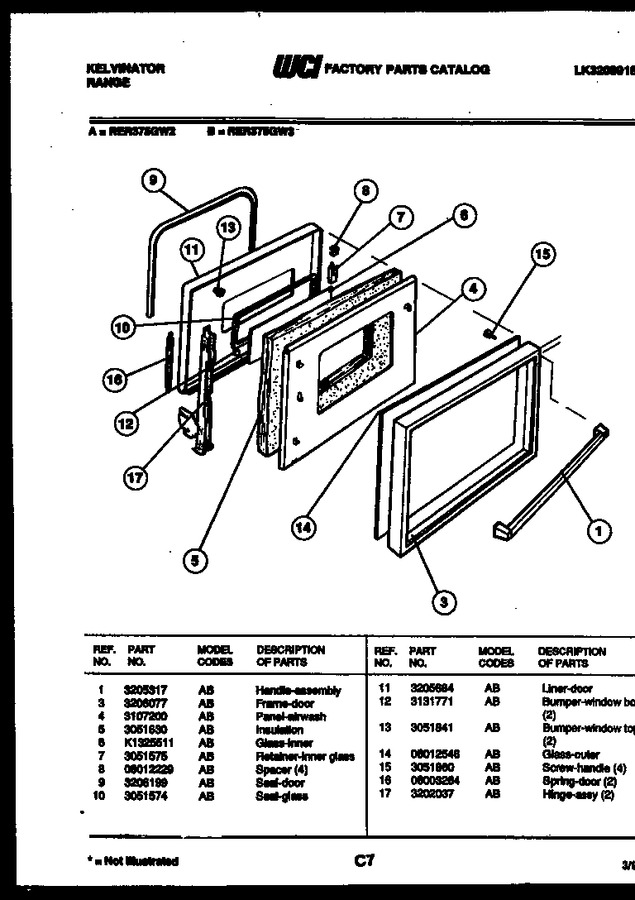

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205317 | Handle-assembly |
|
- | |||||
| 3 | 3206077 | Frame, Door |
|
- | |||||
| 4 | 3107200 | Panel-airwash |
|
- | |||||
| 5 | 3051630 | Insulation |
|
- | |||||
| 6 | K1325511 | Glass, Inner |
|
- | |||||
| 7 | 3051575 | Retainer-inner Glass |
|
- | |||||
| 8 | 08012229 | Spacer (4) |
|
- | |||||
| 9 | 3206199 | Seal-door |
|
- | |||||
| 10 | 3051574 | Seal-glass |
|
$ 36.58 | |||||
| 11 | 3205684 | Liner-door |
|
- | |||||
| 12 | 3131771 | Bumper-window Bot (2) |
|
- | |||||
| 13 | 3051841 | Bumper-window Top (2) |
|
- | |||||
| 14 | 08012546 | Glass - Outer |
|
- | |||||
| 15 | 3051860 | Screw Handle (4) |
|
- | |||||
| 16 | 08003264 | Spring-oven Door |
|
- | |||||
| 17 | 3202037 | Hinge-assy (2) |
|
- |
