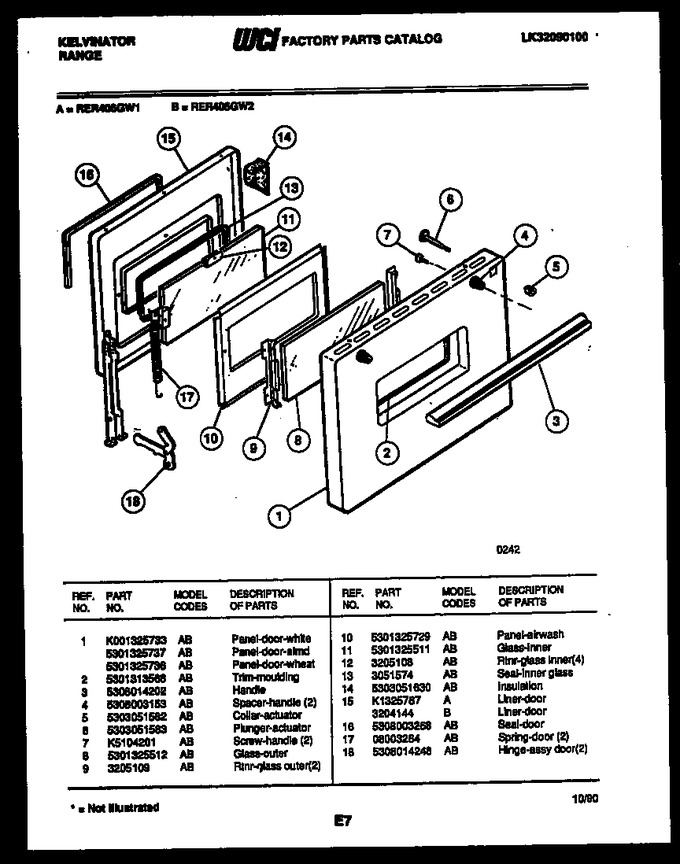

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | K001325733 | Panel Door (white) |
|
- | |||||
| 2 | 5301313568 | Trim-moulding |
|
- | |||||
| 3 | 5308014202 | Handle |
|
- | |||||
| 4 | 5308003153 | Spacer-handle, (2) |
|
- | |||||
| 5 | 5303051582 | Collar Actuator |
|
- | |||||
| 6 | 5303051583 | Plunger - Actuator |
|
- | |||||
| 7 | K5104201 | Screw, Handle (2) |
|
- | |||||
| 8 | 5301325512 | Glass - Outer |
|
- | |||||
| 9 | 3205109 | Rtnr - Glass Outer (2) |
|
- | |||||
| 10 | 5301325729 | Panel-airwash |
|
- | |||||
| 11 | 5301325511 | Glass, Inner |
|
- | |||||
| 12 | 3205108 | Rtnr - Glass Inner (4) |
|
- | |||||
| 13 | 3051574 | Seal, Inner Glass |
|
$ 36.58 | |||||
| 14 | 5303051630 | Insulation |
|
- | |||||
| 15 | K1325787 | Liner - Door |
|
- | |||||
| 16 | 5308003268 | Seal, Door |
|
- | |||||
| 17 | 08003264 | Spring-oven Door |
|
- | |||||
| 18 | 5308014248 | Hinge-assy Door (2) |
|
- |
