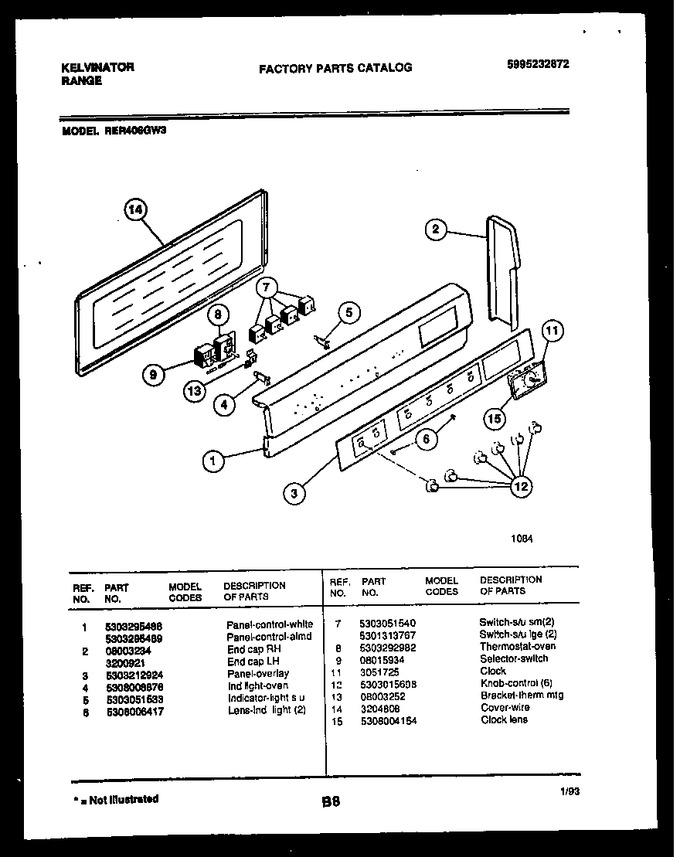

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303295488 | Panel-control-white |
|
- | |||||
| 2 | 08003234 | End Cap, Rh |
|
- | |||||
| 2 | 3200921 | End Cap - Lh |
|
- | |||||
| 3 | 5303212924 | Panel-overlay |
|
- | |||||
| 4 | 5308008876 | Ind Light-oven |
|
- | |||||
| 5 | 5303051533 | Indicator Light S/u |
|
$ 53.81 | |||||
| 6 | 5308006417 | Lens-ind Light (2) |
|
$ 19.06 | |||||
| 7 | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 7 | 5301313767 | Switch-s/u Ige (2) |
|
- | |||||
| 8 | 5303292982 | Thermostat-oven |
|
- | |||||
| 9 | 08015934 | Selector - Switch |
|
- | |||||
| 11 | 3051725 | Clock |
|
- | |||||
| 12 | 5303015698 | Knob-control (6) |
|
- | |||||
| 13 | 08003252 | Bracket - Thermostat |
|
- | |||||
| 14 | 3204808 | Cover Wire |
|
- | |||||
| 15 | 5308004154 | Clock Lens |
|
- |
