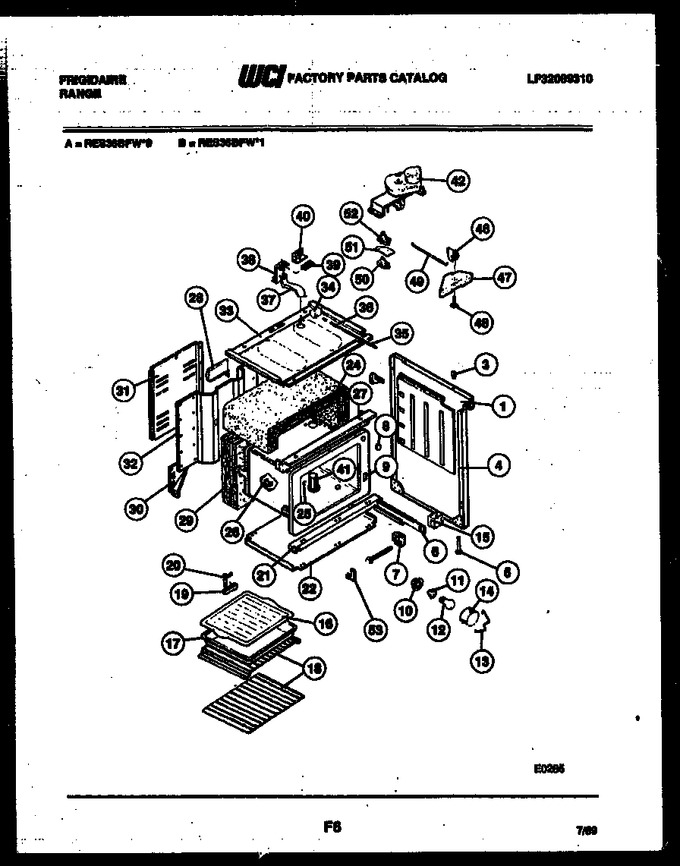

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08012527 | Side Pnl - Rh (white) |
|
- | |||||
| 3 | 08003107 | Bumper - Cooktop (4) |
|
- | |||||
| 4 | 08012235 | Retainer-insulation (2) |
|
- | |||||
| 5 | 08003583 | Screw-leveling |
|
- | |||||
| 6 | 08015746 | Rail - Drawer Rh |
|
- | |||||
| 7 | 08003103 | Guide - Drawer Front |
|
- | |||||
| 8 | 3051784 | Plug Button-oven Light Hole |
|
- | |||||
| 9 | 08012237 | Oven Liner |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 08011085 | Receptacle - Light |
|
- | |||||
| 12 | 3013071 | Light Bulb |
|
- | |||||
| 13 | 08011087 | Retainer - Lens |
|
- | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 15 | 08011055 | Spacer - Drwr Rail (2) |
|
- | |||||
| 16 | 3203164 | Grille - Broiler |
|
- | |||||
| 17 | 08005315 | Pan, Broiler |
|
- | |||||
| 18 | 3131973 | Rack - Oven Regular |
|
- | |||||
| 19 | 3051098 | Terminal-block |
|
- | |||||
| 20 | 08003146 | Strap - Ground |
|
- | |||||
| 21 | 3200927 | Channel - Oven Support Lower |
|
- | |||||
| 22 | 3203172 | Panel - Bottom |
|
- | |||||
| 24 | 3051630 | Insulation Oven Wrap |
|
- | |||||
| 25 | 3051796 | Plug Button - Thermo Bulb Hole |
|
- | |||||
| 26 | 3051552 | Brkt, Thermobulb |
|
- | |||||
| 27 | 3203178 | Channel, Oven Support Upper |
|
- | |||||
| 28 | 08015742 | Channel - Air |
|
- | |||||
| 29 | 3051630 | Insulation-oven Back |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 3051856 | Cover - Wire |
|
- | |||||
| 32 | 3017575 | Back - Range |
|
- | |||||
| 33 | 08014247 | Panel - Subtop |
|
- | |||||
| 34 | 08003081 | Switch - Door |
|
- | |||||
| 35 | 3051645 | Push Rod |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 37 | 08014259 | Tube - Oven Vent |
|
- | |||||
| 38 | 08014260 | Bracket - Oven Vent Tube |
|
- | |||||
| 39 | 3051666 | Gasket, Oven Vent Tube |
|
- | |||||
| 40 | 3051643 | Bracket-door Latch Sw |
|
- | |||||
| 41 | 08012752 | Vent Tube |
|
- | |||||
| 42 | 08015743 | Latch - Motor |
|
- | |||||
| 46 | 3051648 | Latch-door |
|
- | |||||
| 47 | 3051647 | Housing-door Latch |
|
- | |||||
| 48 | 08003184 | Axle |
|
- | |||||
| 49 | 3051649 | Tie Bar |
|
- | |||||
| 50 | 3007889 | Switch - Lower |
|
- | |||||
| 51 | 08003090 | Insulator |
|
- | |||||
| 52 | 08003092 | Switch - Upper |
|
- | |||||
| 53 | 3051810 | Retainer-door (2) |
|
- | |||||
| 18A | 08014219 | Rack-oven, Offset |
|
- | |||||
| 1A | 08012528 | Side Pnl - Lh (white) |
|
- | |||||
| 30A | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 33A | 08002847 | Washer-padded (non-illustrated) |
|
- | |||||
| 6A | 3051652 | Rail, Drawer Lh |
|
- |
