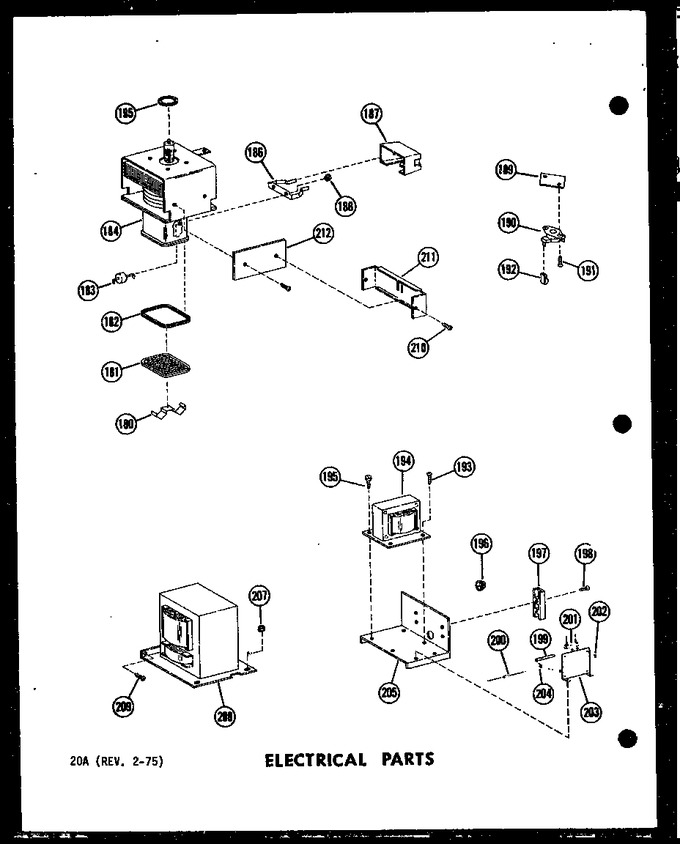

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 180 | A3145401 | Bale Strap K |
|
- | |||||
| 181 | B5647901 | Cover Cap Box K |
|
- | |||||
| 182 | A3148701 | Gasket |
|
- | |||||
| 183 | A3148801 | Capacitor K |
|
- | |||||
| 184 | D7138201 | Assembly, Magnetron |
|
- | |||||
| 185 | A3185102 | Gasket, Magnetron |
|
- | |||||
| 186 | B5655902 | Clip K |
|
- | |||||
| 187 | B5656001 | Shield Hv K |
|
- | |||||
| 188 | M0281901 | Hex Nut |
|
- | |||||
| 189 | A3213901 | Plate K |
|
- | |||||
| 190 | B5703001 | Thermal Cut Out K |
|
- | |||||
| 191 | M0230015 | Screw |
|
- | |||||
| 192 | M0325501 | Insulator, Pod K |
|
- | |||||
| 193 | M0202543 | Screw |
|
- | |||||
| 194 | C3663903 | Transformer Filament |
|
- | |||||
| 195 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 196 | A4554806 | Snap Bushing |
|
- | |||||
| 197 | B5677203 | Terminal Block |
|
- | |||||
| 198 | M0234117 | Screw |
|
- | |||||
| 199 | M0321701 | Sleeve |
|
- | |||||
| 200 | M0308102 | Fuse |
|
- | |||||
| 201 | M0305010 | Resistor, 4 Ohm, 8 Watt |
|
- | |||||
| 202 | M0218116 | Screw |
|
- | |||||
| 203 | B5685902 | Assembly, Fuse, Resistor, & Te |
|
- | |||||
| 204 | M0325301 | Insulator, Term. K |
|
- | |||||
| 205 | C3691601 | Bracket |
|
- | |||||
| 207 | WP487939 | Nut (Replaces: M0282015) |
|
$ 6.95 | |||||
| 208 | D7132401 | Transformer |
|
- | |||||
| 209 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 210 | WPW10068250 | Screw (Replaces: M0234029) |
|
$ 3.66 | |||||
| 211 | B5694001 | Baffle |
|
- | |||||
| 212 | B5694101 | Plate |
|
- |
