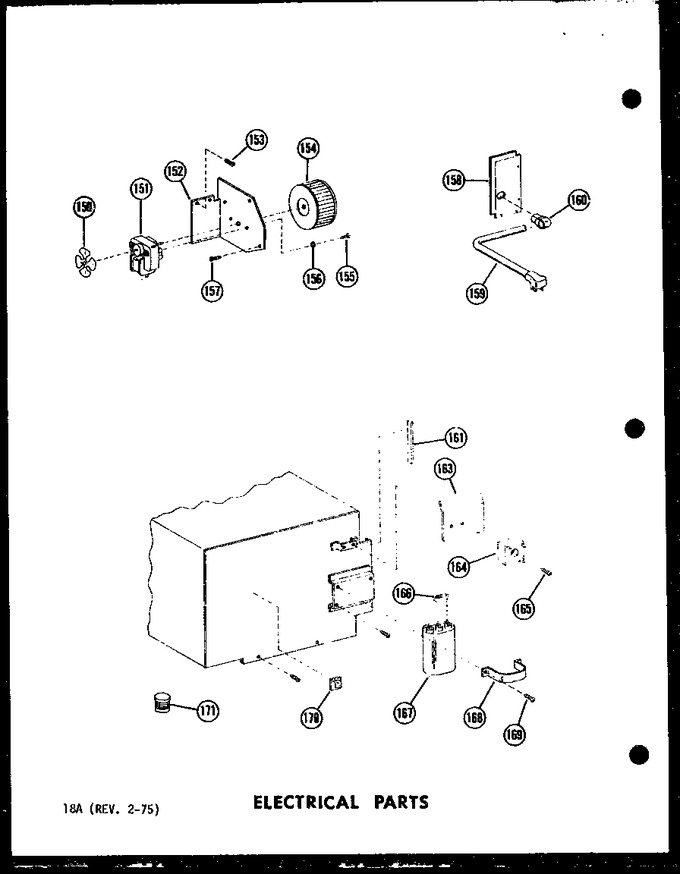

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 150 | B5661802 | Fan Blade |
|
- | |||||
| 151 | C3670901 | Motor, Blower |
|
- | |||||
| 152 | B5673801 | Bracket |
|
- | |||||
| 153 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 154 | C3670801 | Blower Wheel |
|
- | |||||
| 155 | M0202642 | Screw |
|
- | |||||
| 156 | M0272605 | Washer |
|
- | |||||
| 157 | M0230017 | Screw,tc |
|
- | |||||
| 158 | B5674101 | Panel-serial Plate |
|
- | |||||
| 159 | B5674403 | Cord, Power |
|
- | |||||
| 160 | M0371301 | Strain Relief |
|
- | |||||
| 161 | A3030333 | Gasket (1=1ft.) |
|
- | |||||
| 163 | A3203801 | Heatsink-rectifier |
|
- | |||||
| 164 | B5672401 | Rectifier |
|
- | |||||
| 165 | M0216517 | Screw |
|
- | |||||
| 166 | M0305202 | Resistor A |
|
- | |||||
| 167 | R0160003 | Capacitor, H.v. With M3052-2 R |
|
- | |||||
| 168 | A3184702 | Bracket |
|
- | |||||
| 169 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 170 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 171 | A3204901 | Thermal Compound K |
|
- |
