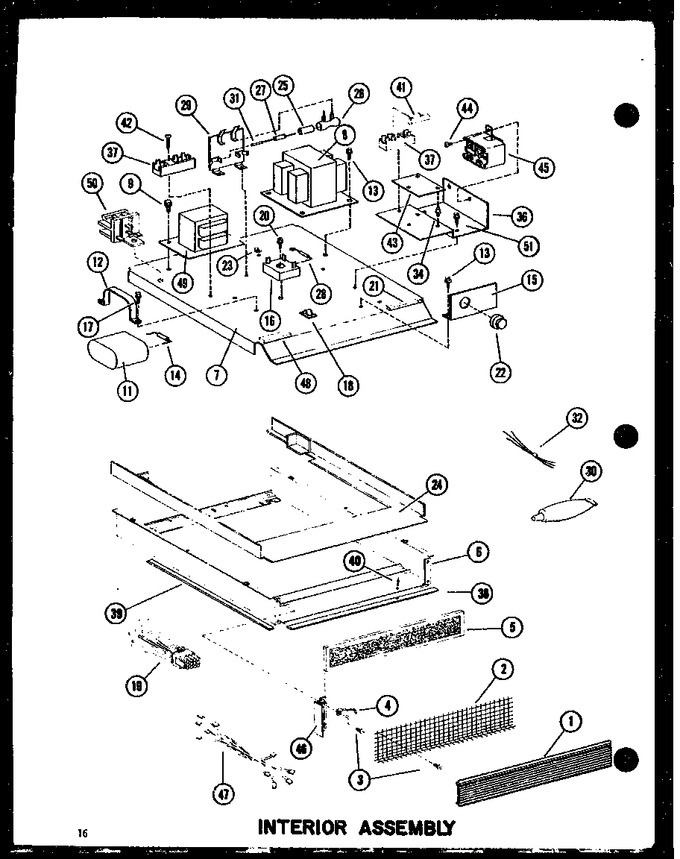

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8708501		Grille Air Inlet		Appelez-nous	-
2	B5713901		Screen, Air Intake		Appelez-nous	-
3	M0230015		Screw		Appelez-nous	-
4	A3225201		Clip		Appelez-nous	-
4	A3225202		Clip		Appelez-nous	-
5	B5714801		Filter		Appelez-nous	-
6	C8709102		Base Pan Wld		Appelez-nous	-
7	D7203601		Chassis		Appelez-nous	-
8	D7309402		Trans-power		Appelez-nous	-
9	M0253543		Screw K		Appelez-nous	-
11	R0160003		Capacitor, H.v. With M3052-2 R		Appelez-nous	-
12	A3184702		Bracket		Appelez-nous	-
13	M0218116		Screw		Appelez-nous	-
14	M0305202		Resistor A		Appelez-nous	-
15	C8779501		Brkt-alarm		Appelez-nous	-
16	B5672401		Rectifier		Appelez-nous	-
17	M0216517		Screw		Appelez-nous	-
18	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
19	D7319401		Wiring Harness-ps		Appelez-nous	-
20	M0234117		Screw		Appelez-nous	-
21	B5718907		Gasket, Base Pan		Appelez-nous	-
22	A3276301		Alarm		Appelez-nous	-
23	M0320901		Terminal		Appelez-nous	-
24	C8775301		Oven Mtg Plate		Appelez-nous	-
25	M0321701		Sleeve		Appelez-nous	-
26	M0305010		Resistor, 4 Ohm, 8 Watt		Appelez-nous	-
27	M0308102		Fuse		Appelez-nous	-
28	A3232901		Resistor-5w Gr		Appelez-nous	-
29	B5687401		Terminal Board		Appelez-nous	-
30	M0275560		Rtv (blk)		Appelez-nous	-
31	M0321702		Sleeve K		Appelez-nous	-
32	C8800501		Wiring Harness		Appelez-nous	-
34	B5675501		Supt Ckt Bd A		Appelez-nous	-
36	C8800001		Brkt-surge Relay		Appelez-nous	-
37	B5677203		Terminal Block		Appelez-nous	-
38	C8737301		Gasket, Base Pan		Appelez-nous	-
39	C8737302		Gasket, Base Pan		Appelez-nous	-
40	A4539602		Pop Rivet		Appelez-nous	-
41	M0305007		Resistor, Relay A		Appelez-nous	-
42	M0234117		Screw		Appelez-nous	-
43	B5691003		Time Delay		Appelez-nous	-
44	M0230015		Screw		Appelez-nous	-
45	C3669601		Relay Kit		Appelez-nous	-
46	B5714401		End Cap-grill		Appelez-nous	-
47	C8781601		Wiring Harness-hv		Appelez-nous	-
48	A3030337		Gasket-per Ft		Appelez-nous	-
49	C3663906		Trans-filament		Appelez-nous	-
50	B5674306		Relay		Appelez-nous	-
51	M0253543		Screw K		Appelez-nous	-
