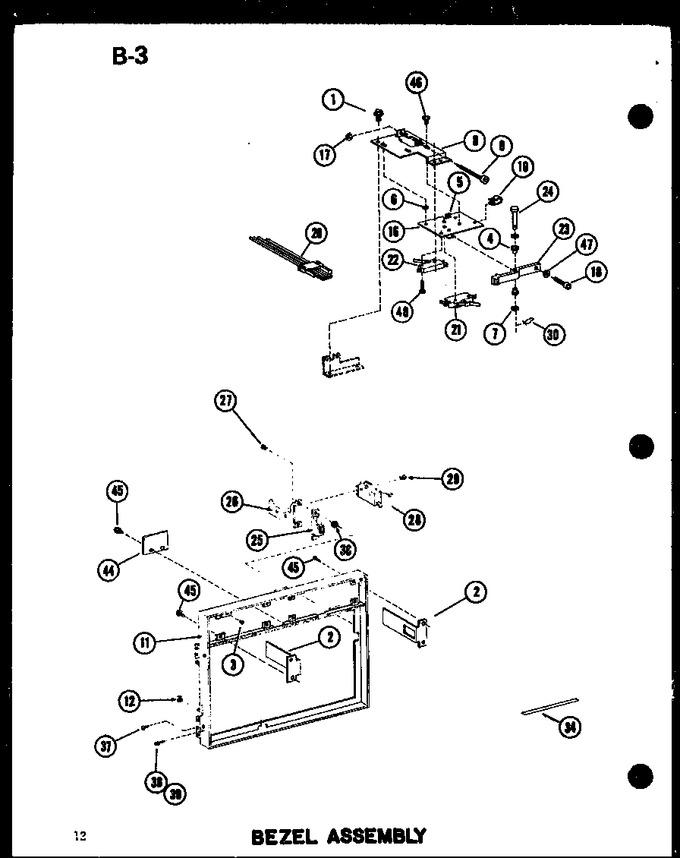

01 - Bezel Assy


02 - Door Assy


03 - Electrical Assy


04 - Interior Assy


05 - Page 2


06 - Page 3


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0218116		Screw		Appelez-nous	-
2	B5758201		Brkt-frame		Appelez-nous	-
3	M0113006		Clip A		Appelez-nous	-
4	A3168101		See Svc Ltr Cr-163d		Appelez-nous	-
5	M0118801		Clip		Appelez-nous	-
6	M0274032		Washer Non-metal		Appelez-nous	-
7	M0270524		Washer		Appelez-nous	-
8	B5747201		Adj Brkt-switch		Appelez-nous	-
9	A3262501		Adj Screw		Appelez-nous	-
11	D7293501		Bezel, Outer Case		Appelez-nous	-
12	M0283401		Nut, Self Thread		Appelez-nous	-
16	B5747501		Mtg Plate-interlock		Appelez-nous	-
17	M0274301		E Ring External K		Appelez-nous	-
18	M0204617		Screw		Appelez-nous	-
19	M0102301		Clamp		Appelez-nous	-
20	D7311501		Wiring Harness		Appelez-nous	-
21	C3670014		Switch-interlock (limit)		Appelez-nous	-
22	C3670014		Switch-interlock (limit)		Appelez-nous	-
23	B5755701		Actuating Arm		Appelez-nous	-
24	A3260201		Pin-retainer		Appelez-nous	-
25	C3680202		Strike-latch		Appelez-nous	-
26	B5675403		Bracket-latch		Appelez-nous	-
27	M0218117		Screw		Appelez-nous	-
28	A3163409		Switch, Preform		Appelez-nous	-
29	M0227520		Screw		Appelez-nous	-
30	A3171501		Clip,hairpin		Appelez-nous	-
34	M0275140		Tape Per Roll		Appelez-nous	-
36	M0270524		Washer		Appelez-nous	-
37	M0253230		Screw		Appelez-nous	-
38	M0285902		T Nut		Appelez-nous	-
39	M0205442		Screw, Nylock		Appelez-nous	-
44	A3296201		Plate-latch		Appelez-nous	-
45	M0218115		Screw		Appelez-nous	-
46	M0230015		Screw		Appelez-nous	-
47	M0282005		Nut K				$ 7.07
48	M0227520		Screw		Appelez-nous	-
