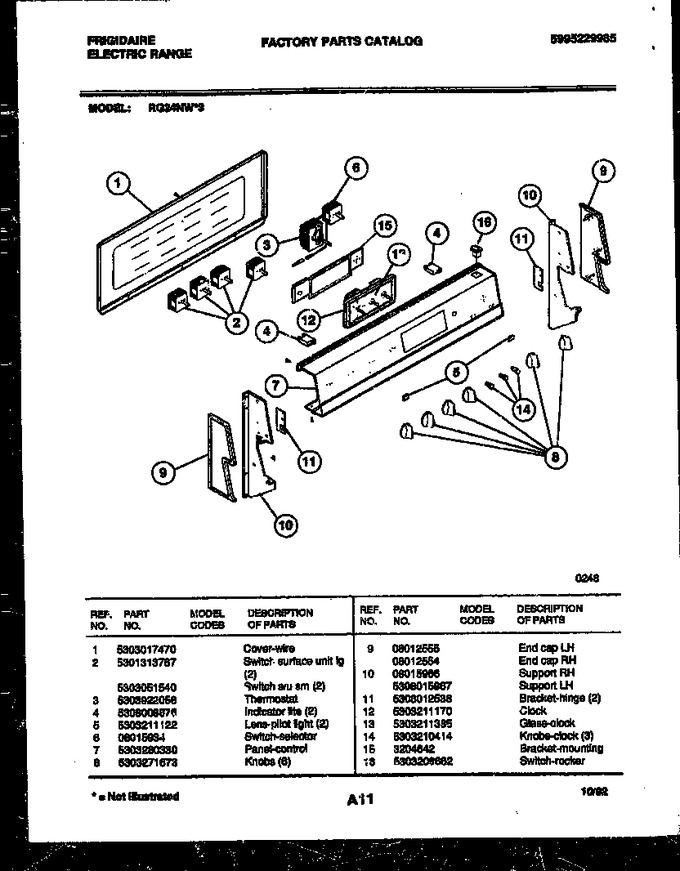

02 - Control Panel
03 - Cooktop Parts
04 - Door/broiler Parts
05 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5301313767 | Switch Surface Unit Lg. (2) |
|
- | |||||
| 3 | 5303922058 | Thermostat |
|
- | |||||
| 4 | 5308008876 | Indicator Lite (2) |
|
- | |||||
| 5 | 5303211122 | Lens - Pilot Light (2) |
|
- | |||||
| 6 | 08015934 | Switch, Selector |
|
- | |||||
| 7 | 5303280330 | Panel-control |
|
- | |||||
| 8 | 5303271673 | Knobs (6) |
|
- | |||||
| 9 | 08012555 | End Cap, Lh |
|
- | |||||
| 10 | 08015966 | Support Rh |
|
- | |||||
| 11 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 12 | 5303211170 | Clock |
|
- | |||||
| 13 | 5303211385 | Glass - Clock |
|
- | |||||
| 14 | 5303210414 | Knobs - Clock (3) |
|
- | |||||
| 15 | 3204642 | Bracket - Mounting |
|
- | |||||
| 16 | 5303208662 | Switch-rocker |
|
- | |||||
| 10A | 5308015967 | Support - Lh |
|
- | |||||
| 2A | 5303051540 | Switch, S/u Sm (2) |
|
- | |||||
| 9A | 08012554 | End Cap, Rh |
|
- |
