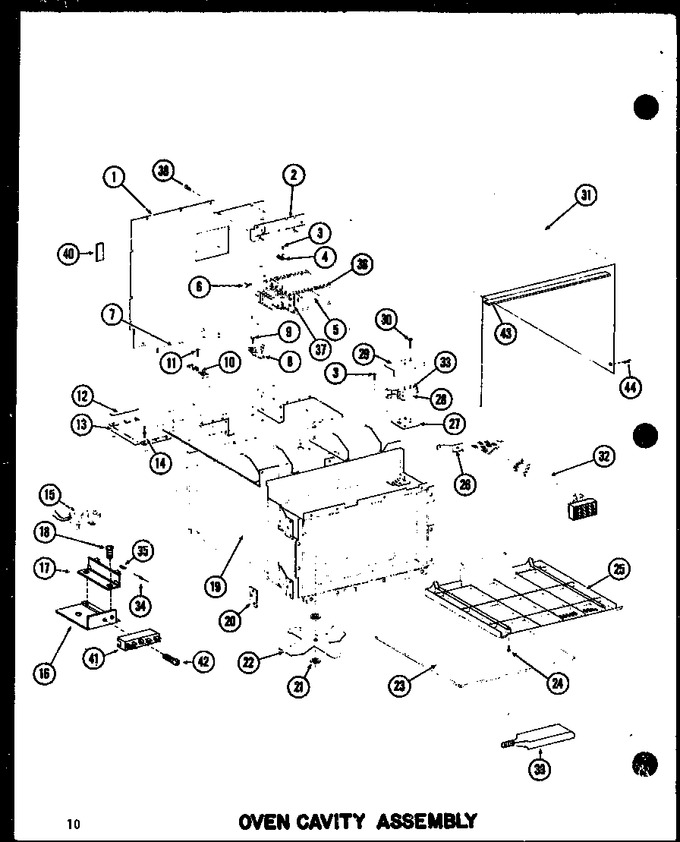

01 - Bezel Assy


02 - Control Assy


03 - Door Assy


04 - Electrical Assy


05 - Interior Assy


06 - Oven Cavity Assy


07 - Page 7


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8801101		Weldment, Access Panel		Appelez-nous	-
2	B5763501		Panel, Strain Relief		Appelez-nous	-
3	M0234114		Screw		Appelez-nous	-
4	18QBP110H		Thermal Cutout   (Replaces: B5684104)		Appelez-nous	-
4	B5684102		Thermal Protector		Appelez-nous	-
5	C8720502		Assembly, Isolator		Appelez-nous	-
6	M0216517		Screw		Appelez-nous	-
7	A3030335		Gasket-per Ft		Appelez-nous	-
8	B5703002		Thermal Cut Out		Appelez-nous	-
9	M0218116		Screw		Appelez-nous	-
10	B5677203		Terminal Block		Appelez-nous	-
11	M0234117		Screw		Appelez-nous	-
12	B5718903		Gasket K		Appelez-nous	-
13	B5714101		Cover-isolator		Appelez-nous	-
14	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
15	B5602811		Motor		Appelez-nous	-
16	B5737201		Bracket K		Appelez-nous	-
17	B5722002		Terminal Board		Appelez-nous	-
18	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
19	D7359402		Oven Wld		Appelez-nous	-
20	A3250301		Shim-hinge		Appelez-nous	-
21	A3109101		Washer		Appelez-nous	-
22	C8708601		Stirrer Blade (antenna)		Appelez-nous	-
23	B5748801		Tray, Oven		Appelez-nous	-
24	A3245601		Screw Retainer		Appelez-nous	-
25	D7238301		Grease Shield Kit		Appelez-nous	-
26	B5718701		Spring-door Stop		Appelez-nous	-
27	B5719701		Bracket-switch		Appelez-nous	-
28	C3670011		Switch, Interlock Sensing, Bot		Appelez-nous	-
29	B5685603		Pad Insulation A		Appelez-nous	-
30	M0213123		Screw		Appelez-nous	-
31	D7299901		Wrapper-oc		Appelez-nous	-
32	D7208201		Wiring Harness		Appelez-nous	-
33	B5671603		Switch, Interlock, Top		Appelez-nous	-
34	M0308101		Fuse				$ 9.87
35	M0305402		Resistor Fuse Kit		Appelez-nous	-
36	A3225401		Gasket K		Appelez-nous	-
37	A3225402		Gasket K		Appelez-nous	-
38	M0228015		Screw		Appelez-nous	-
39	M0275501		Sealer		Appelez-nous	-
40	B5738501		Seal K		Appelez-nous	-
41	B5677203		Terminal Block		Appelez-nous	-
42	M0234117		Screw		Appelez-nous	-
43	A3030302		Gasket		Appelez-nous	-
44	67006425		Screw   (Replaces: M0230917)			Immediately	$ 6.26
