02 - Control Panel
03 - Door And Drawer Parts
04 - Door Parts
05 - Cooktop And Broiler Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

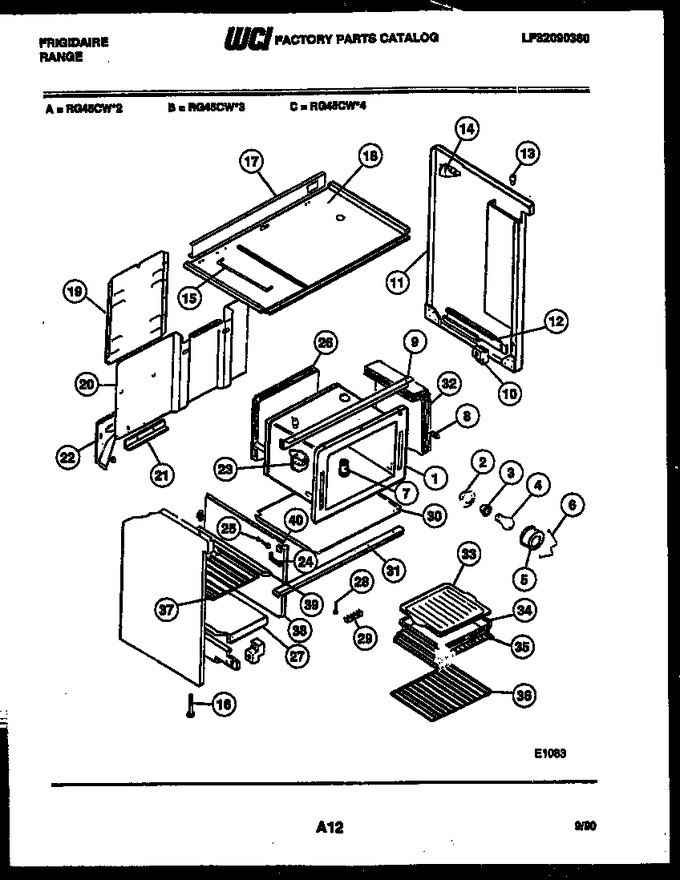

| 1 | 3204608 | Liner - Oven Rh |
|
- | |||||
| 2 | 3204816 | Housing, Oven Light |
|
- | |||||
| 3 | 316116400 | Receptacle - Oven Lt (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 4 | 40A15 | Bulb, Oven Light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 5 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 6 | 5303205904 | Rtnr - Lens Oven Lt |
|
$ 7.67 | |||||
| 7 | 08003237 | Tube - Oven Vent Rh |
|
- | |||||
| 8 | 08015948 | Switch - Oven Light |
|
- | |||||
| 9 | 5303209334 | Support - Cooktop |
|
- | |||||
| 10 | 3051654 | Guide, Front (2) |
|
- | |||||
| 11 | 5308012527 | Pnl - End Rh (white) |
|
- | |||||
| 12 | 3204818 | Rail - Drwr Rh |
|
- | |||||
| 13 | 5308003107 | Bumper, Cooktop (2) |
|
- | |||||
| 14 | 3204821 | Gusset, Backguard (2) |
|
- | |||||
| 15 | 3051554 | Rod Cooktop |
|
- | |||||
| 16 | 5303205540 | Screw-leveling (4) |
|
- | |||||
| 17 | 08016546 | Shield - Wire |
|
- | |||||
| 18 | 08011947 | Panel - Sub Top |
|
- | |||||
| 19 | 3204650 | Cover |
|
- | |||||
| 20 | 3204827 | Back, Range |
|
- | |||||
| 21 | 08011953 | Support |
|
- | |||||
| 22 | 3204822 | Gusset, Rear, Rh |
|
- | |||||
| 23 | 08014653 | Brkt-thermo Bulb |
|
- | |||||
| 26 | 5303051630 | Insulation-back |
|
- | |||||
| 27 | 08011951 | Panel - Bottom |
|
- | |||||
| 28 | 08003146 | Clip |
|
- | |||||
| 29 | 5303161116 | Block - Terminal |
|
- | |||||
| 30 | 3203574 | Panel - Bottom |
|
- | |||||
| 31 | 08011954 | Channel - Oven Supt |
|
$ 47.60 | |||||
| 32 | 3051521 | Insul - Oven Wrap |
|
- | |||||
| 33 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 34 | 3200723 | Pan, Broiler |
|
- | |||||
| 35 | 08014219 | Rack-oven, Offset |
|
- | |||||
| 36 | 5303131973 | Rack - Oven Reg |
|
- | |||||
| 37 | 08011960 | Rack - Comp |
|
- | |||||
| 38 | 08016542 | Partition - Cent |
|
- | |||||
| 39 | 08011959 | Glide - Storage Rack |
|
- | |||||
| 40 | 3204318 | Plate-strike |
|
- | |||||
| *99015 | 3934058 | Anti-tip Kit |
|
$ 98.75 | |||||
| 11A | 5308012528 | Pnl - End Lh (white) |
|
- | |||||
| 12A | 3204819 | Rail - Drwr Lh |
|
- | |||||
| 22A | 3204823 | Gusset, Rear, Lh |
|
- |
