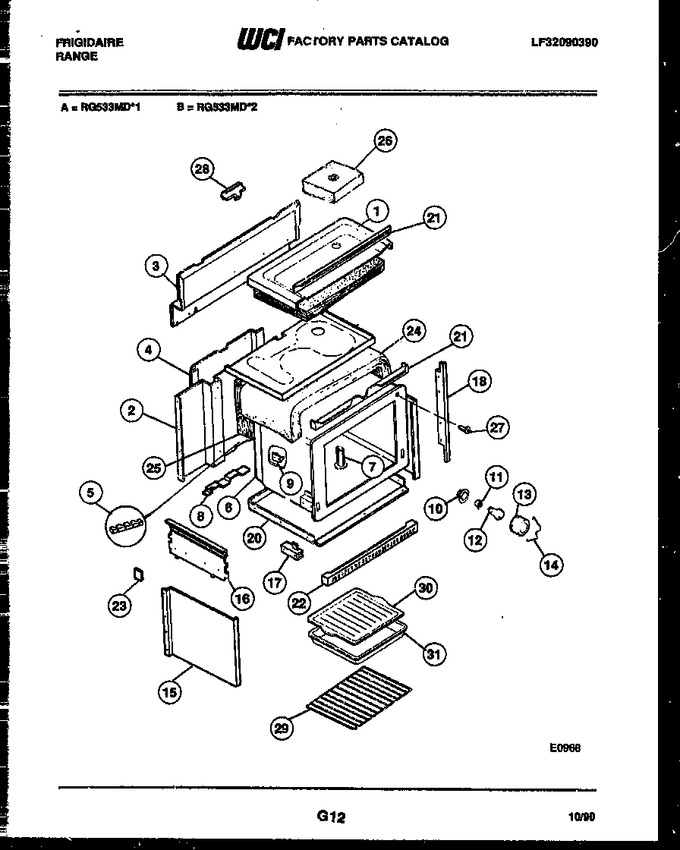

SELECT A DIAGRAM

02 - Door Parts


03 - Control Panel


04 - Cooktop And Broiler Parts


05 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303051553		Panel, Subtop		Appelez-nous	-
2	3204649		Back, Range		Appelez-nous	-
3	5308008689		Back Range, Upper		Appelez-nous	-
4	3204650		Cover, Wire		Appelez-nous	-
5	5303051098		Terminal Block		Appelez-nous	-
6	3204607		Liner, Oven		Appelez-nous	-
6	3205131		Liner, Oven		Appelez-nous	-
7	08003333		Tube, Vent		Appelez-nous	-
8	3203574		Plate-mtg		Appelez-nous	-
9	3051552		Bracket-therm Bulb		Appelez-nous	-
10	3204816		Housing-ov It		Appelez-nous	-
11	316116400		Receptacle-light   (Replaces: 5308011085)			Immediately	$ 56.10
12	40A15		Light Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
13	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 15.61
14	5303205904		Retainer-lens				$ 7.67
15	08012226		Retainer, Insul (2)		Appelez-nous	-
16	5308015935		Panel, Side (2)		Appelez-nous	-
17	3051527		Brkt, Supt. Rh (2)		Appelez-nous	-
17	08003334		Trim-oven Frnt (2)		Appelez-nous	-
17	3051528		Brkt, Supt Lh (2)		Appelez-nous	-
20	3204634		Retainr-insul. Btm		Appelez-nous	-
21	5308008693		Bracket, Cooktop		Appelez-nous	-
22	8012249		Grill-bottom		Appelez-nous	-
23	3051827		Plate, Filler (2)		Appelez-nous	-
24	3051521		Insulation Wrap		Appelez-nous	-
25	5303051630		Insulation-back		Appelez-nous	-
26	3051523		Insulation, Vent Tube		Appelez-nous	-
27	08015948		Switch-ovn Light		Appelez-nous	-
28	3051800		Bracket-hng Supt		Appelez-nous	-
29	5303131973		Rack, Oven		Appelez-nous	-
30	5303019066		Grill-broiler		Appelez-nous	-
30	5303131356		Grill, Broiler		Appelez-nous	-
31	3200723		Pan, Broiler		Appelez-nous	-
31	5303207208		Pan, Broiler		Appelez-nous	-
*35394	3203396		Rivet, Pop		Appelez-nous	-
*35394	3203578		Plate, Warning		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
