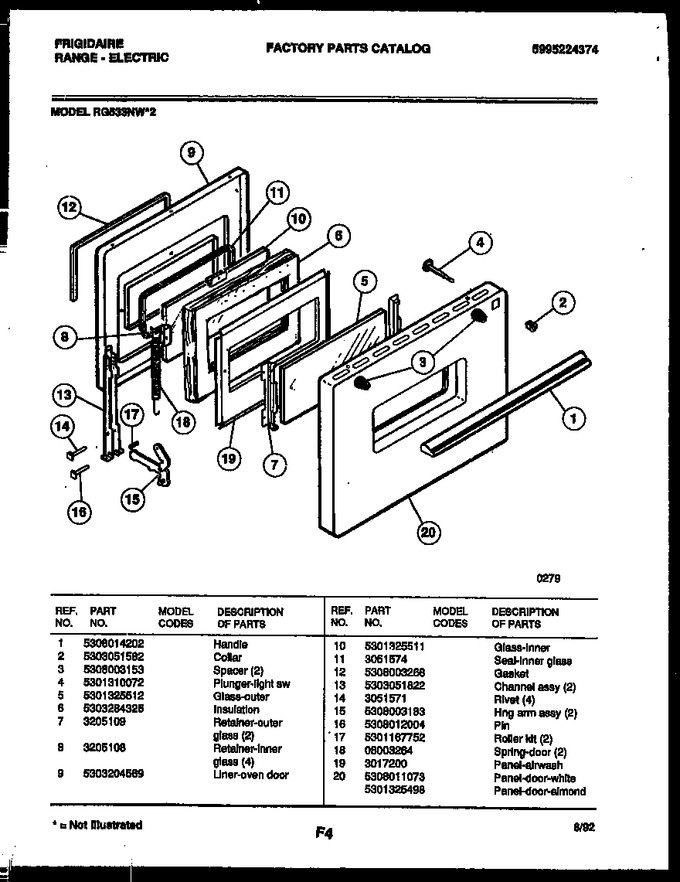

02 - Door Parts
03 - Control Panel
04 - Cooktop And Broiler Parts
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308014202 | Handle |
|
- | |||||
| 2 | 5303051582 | Collar |
|
- | |||||
| 3 | 5308003153 | Spacer (2) |
|
- | |||||
| 4 | 5301310072 | Plunger-light Sw |
|
- | |||||
| 5 | 5301325512 | Glass - Outer |
|
- | |||||
| 6 | 5303284325 | Insulation |
|
- | |||||
| 7 | 3205109 | Retainer-outer Glass (2) |
|
- | |||||
| 8 | 3205108 | Retainer - Inner Glass (4) |
|
- | |||||
| 9 | 5303204569 | Liner, Oven Door |
|
- | |||||
| 10 | 5301325511 | Glass, Inner |
|
- | |||||
| 11 | 3051574 | Seal, Inner Glass |
|
$ 36.58 | |||||
| 12 | 5308003268 | Gasket |
|
- | |||||
| 13 | 5303051822 | Channel Assy (2) |
|
- | |||||
| 14 | 3051571 | Rivet (4) |
|
- | |||||
| 15 | 5308003183 | Hng Arm Assy (2) |
|
$ 90.35 | |||||
| 16 | 5308012004 | Pin |
|
$ 8.29 | |||||
| 17 | 5301167752 | Roller Kit (2) |
|
- | |||||
| 18 | 08003264 | Spring-oven Door |
|
- | |||||
| 19 | 3017200 | Panel, Airwash |
|
- | |||||
| 20 | 5301325498 | Panel, Door, Almond |
|
- |
