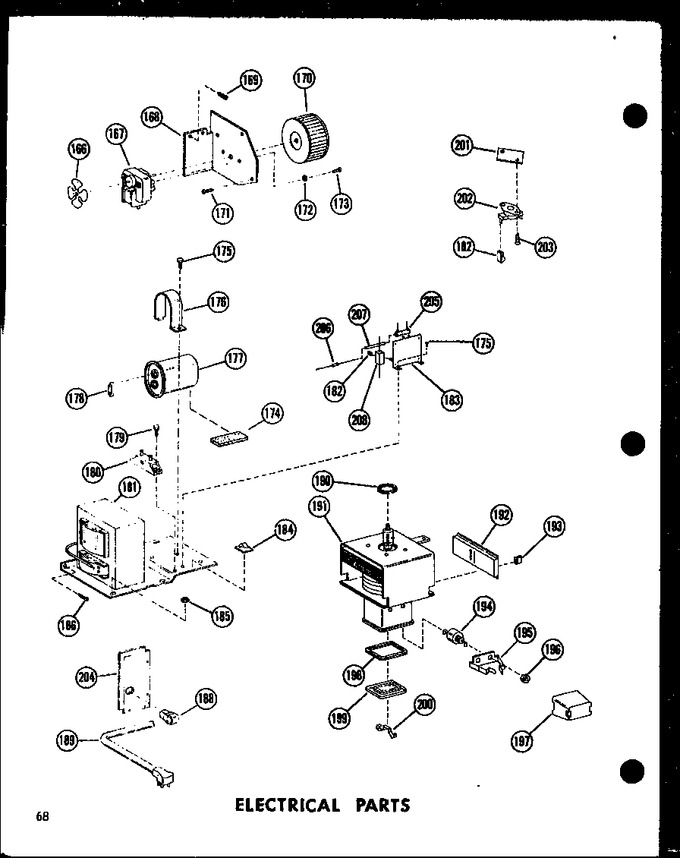

01 - Electrical Parts
02 - Exterior Parts
03 - Exterior Parts
04 - Interior Parts
05 - Interior Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 166 | B5661801 | Fan Blade |
|
- | |||||
| 167 | M0306701 | Motor |
|
- | |||||
| 168 | B5657501 | Bracket,motor Mount |
|
- | |||||
| 169 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.04 | ||||
| 170 | B5660901 | Blower Wheel |
|
- | |||||
| 171 | M0230017 | Screw,tc |
|
- | |||||
| 172 | M0272605 | Washer |
|
- | |||||
| 173 | M0202642 | Screw |
|
- | |||||
| 174 | M0050902 | X$x Pad |
|
- | |||||
| 175 | M0218116 | Screw |
|
- | |||||
| 176 | A3197101 | Strap-capacitor A |
|
- | |||||
| 177 | R0160002 | Capacitor Assy |
|
- | |||||
| 178 | M0305202 | Resistor A |
|
- | |||||
| 179 | M0216517 | Screw |
|
- | |||||
| 180 | 11QBP0235 | Kit, Diode (Replaces: B5685801) |
|
$ 15.33 | |||||
| 181 | D7152101 | Transformer |
|
- | |||||
| 182 | M0325301 | Insulator, Term. K |
|
- | |||||
| 182 | M0325501 | Insulator, Pod K |
|
- | |||||
| 183 | B5707301 | Terminal Board |
|
- | |||||
| 184 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 185 | WP487939 | Nut (Replaces: M0282015) |
|
$ 6.95 | |||||
| 186 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 188 | M0371301 | Strain Relief |
|
- | |||||
| 189 | B5674404 | Cord-power |
|
- | |||||
| 190 | A3185102 | Gasket, Magnetron |
|
- | |||||
| 191 | D7157002 | Magnetron Kit,700w |
|
- | |||||
| 192 | B5679101 | Baffle |
|
- | |||||
| 193 | M0113504 | Clip K |
|
- | |||||
| 194 | A3148801 | Capacitor K |
|
- | |||||
| 195 | B5655902 | Clip K |
|
- | |||||
| 196 | M0281901 | Hex Nut |
|
- | |||||
| 197 | B5656001 | Shield Hv K |
|
- | |||||
| 198 | A3148701 | Gasket |
|
- | |||||
| 199 | B5647901 | Cover Cap Box K |
|
- | |||||
| 200 | A3145401 | Bale Strap K |
|
- | |||||
| 201 | A3213901 | Plate K |
|
- | |||||
| 202 | B5703001 | Thermal Cut Out K |
|
- | |||||
| 203 | M0230015 | Screw |
|
- | |||||
| 204 | B5674101 | Panel-serial Plate |
|
- | |||||
| 205 | M0305009 | Resistor A |
|
- | |||||
| 206 | M0308102 | Fuse |
|
- | |||||
| 207 | M0321701 | Sleeve |
|
- | |||||
| 208 | M0305204 | Resistor |
|
- |
