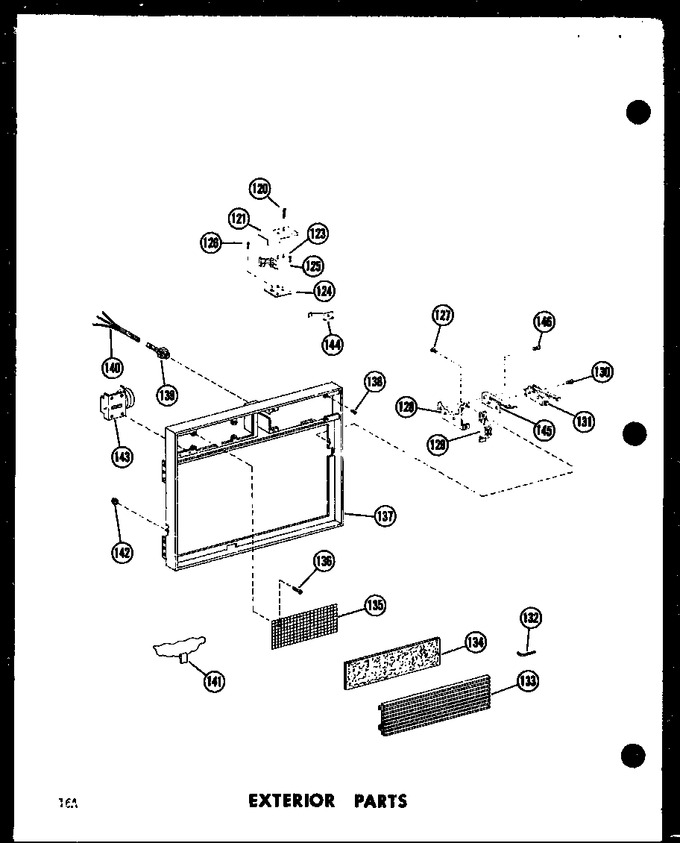

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 120 | M0213123 | Screw |
|
- | |||||
| 121 | B5685603 | Pad Insulation A |
|
- | |||||
| 122 | M0228016 | Screw |
|
- | |||||
| 123 | B5721301 | Switch, Interlock, Top |
|
- | |||||
| 124 | B5719701 | Bracket-switch |
|
- | |||||
| 125 | C3670011 | Switch, Interlock Sensing, Bot |
|
- | |||||
| 126 | M0234114 | Screw |
|
- | |||||
| 127 | M0230017 | Screw,tc |
|
- | |||||
| 128 | B5675403 | Bracket-latch |
|
- | |||||
| 129 | C3680202 | Strike-latch |
|
- | |||||
| 130 | M0227525 | Screw A-k |
|
- | |||||
| 131 | A3163406 | Switch Preform |
|
- | |||||
| 132 | A4696103 | Wrench-hex |
|
- | |||||
| 133 | C3678401 | Grille, Air Inlet |
|
- | |||||
| 134 | A3094902 | Filter |
|
- | |||||
| 135 | B5672301 | Screen-air Inlet |
|
- | |||||
| 136 | M0228016 | Screw |
|
- | |||||
| 137 | D7133403 | Bezel, Outer Case |
|
- | |||||
| 138 | M0113006 | Clip A |
|
- | |||||
| 139 | R0164012 | Socket Assy |
|
- | |||||
| 140 | D7208901 | Wiring Harness |
|
- | |||||
| 141 | A3195801 | Seal K |
|
- | |||||
| 142 | M0283401 | Nut, Self Thread |
|
- | |||||
| 143 | C8701101 | Meter |
|
- | |||||
| 144 | B5718701 | Spring-door Stop |
|
- | |||||
| 145 | A3186401 | Spring-latch |
|
- | |||||
| 146 | M0232012 | Screw |
|
- |
