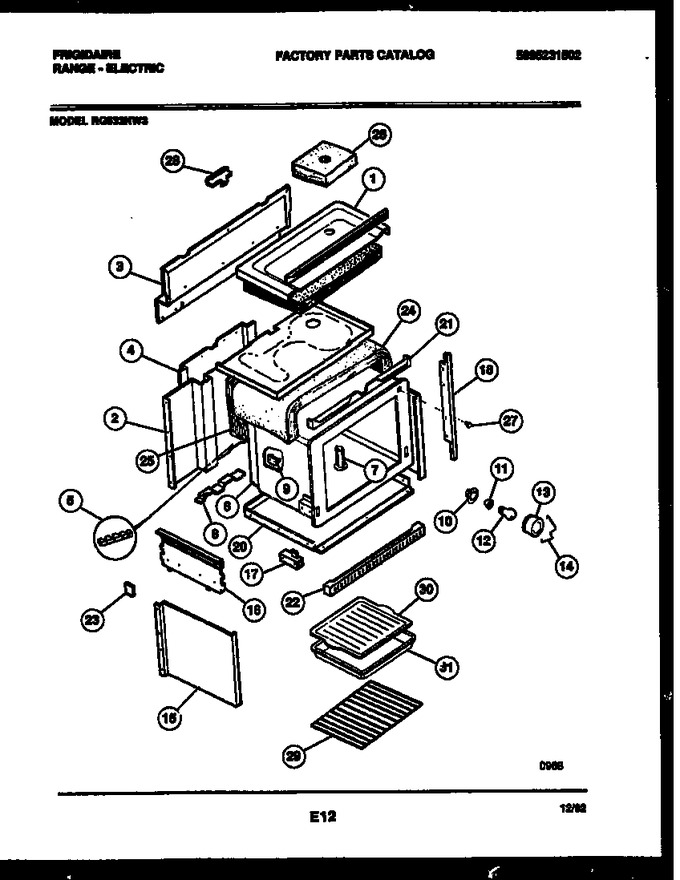

SELECT A DIAGRAM

02 - Door Parts


03 - Control Panel


04 - Cooktop And Broiler Parts


05 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303293414		Panel-subtop		Appelez-nous	-
2	5303280344		Back-range		Appelez-nous	-
3	5303286183		Back-range Upper		Appelez-nous	-
4	5303051856		Cover, Wire		Appelez-nous	-
5	5304409888		Main-terminal Block   (Replaces: 5306563359)			Immediately	$ 26.69
7	08012254		Tube-vent		Appelez-nous	-
8	3203574		Plate-mtg		Appelez-nous	-
9	3051552		Bracket-therm Bulb		Appelez-nous	-
10	3051511		Housing-ov Lt				$ 60.22
11	316116400		Receptacle-light   (Replaces: 5308011085)			Immediately	$ 56.10
12	3201908		Light Bulb		Appelez-nous	-
13	5304524341		Lens-oven Light   (Replaces: 3201911)			Immediately	$ 15.61
14	5303205904		Retainer-lens				$ 7.67
15	08012226		Retainer, Insul (2)		Appelez-nous	-
16	5308015935		Panel, Side (2)		Appelez-nous	-
18	08003334		Trim-oven Frnt (2)		Appelez-nous	-
20	3204634		Retainer, Insul Btm		Appelez-nous	-
21	5303293413		Bracket-cooktop		Appelez-nous	-
22	5308012249		Grill, Bottom		Appelez-nous	-
23	3051827		Plate, Filler (2)		Appelez-nous	-
24	3051521		Insulation Wrap		Appelez-nous	-
25	5303051630		Insulation-back		Appelez-nous	-
26	3051523		Insulation, Vent Tube		Appelez-nous	-
27	5301314211		Switch-ovn Light				$ 95.29
28	3051800		Bracket-hng Supt		Appelez-nous	-
29	5303281625		Rack Oven		Appelez-nous	-
30	5303293415		Grill-broiler		Appelez-nous	-
31	5303293416		Pan-broiler		Appelez-nous	-
*71388	3203618		Rivet,pop		Appelez-nous	-
*71388	19100210116		Wiring Diagram (not For Purchase)		Appelez-nous	-
*71388	3203624		Plate-warning		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
