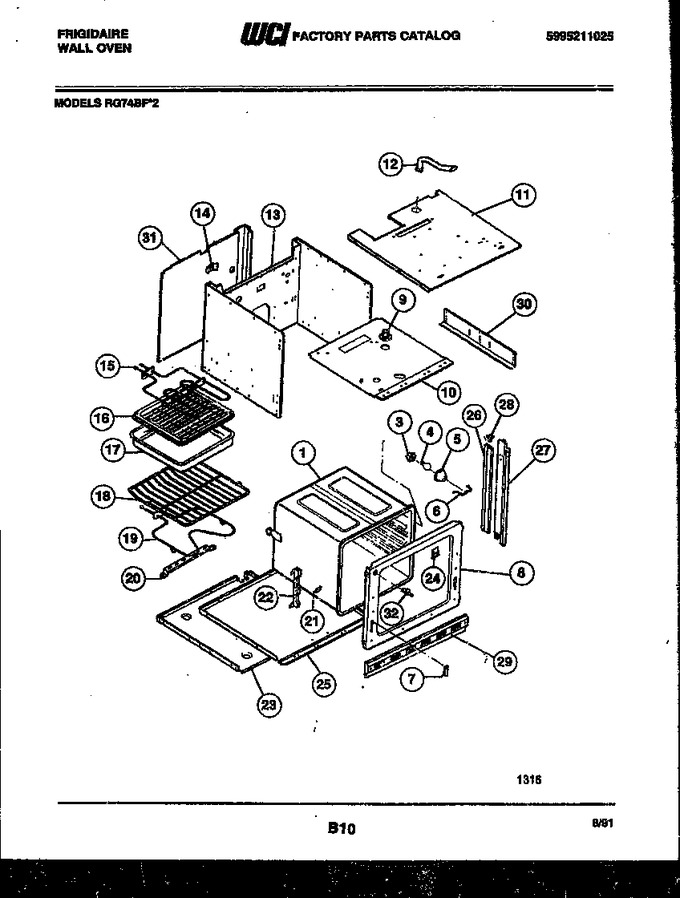

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016269		Liner-oven		Appelez-nous	-
3	316116400		Receptacle   (Replaces: 5308011085)			Immediately	$ 56.10
4	40A15		Bulb   (Replaces: 5303013071)			Immediately	$ 1.98
5	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
6	3204483		Retainer-lens		Appelez-nous	-
7	3019063		Retainer - Door (2)		Appelez-nous	-
8	3202083		Frame-front		Appelez-nous	-
9	5303206498		Vent-tube Assembly		Appelez-nous	-
10	3202304		Shield-top		Appelez-nous	-
11	3202306		Wrapper, Top		Appelez-nous	-
12	3016301		Duct - Vent Tube		Appelez-nous	-
13	3016275		Wrapper		Appelez-nous	-
14	3016281		Spring, Oven (2)		Appelez-nous	-
15	5303016247		Element, Broil				$ 223.97
16	3206091		Insert - Broiler Pan		Appelez-nous	-
17	3205539		Pan, Broiler		Appelez-nous	-
18	5303016315		Rack (2)		Appelez-nous	-
19	318255101		Element - Bake   (Replaces: 5303016246)				$ 185.70
20	3016248		Support, Broil Element		Appelez-nous	-
21	3201632		Spacer, Oven (2)		Appelez-nous	-
22	3201631		Hinge Assembly (2)				$ 58.22
23	3016277		Wrapper, Base		Appelez-nous	-
24	3202082		Cover Seam		Appelez-nous	-
25	3016273		Shield, Insulation		Appelez-nous	-
26	3016280		Trim, Inner, Lh		Appelez-nous	-
26	3016279		Trim, Inner, Rh		Appelez-nous	-
27	5303276721		Trim-side Outer (2)		Appelez-nous	-
28	3202142		Trim, Cap, Rh		Appelez-nous	-
28	3202143		Trim, Cap, Lh		Appelez-nous	-
29	3202141		Trim-base		Appelez-nous	-
30	3016278		Support, Height (2)		Appelez-nous	-
31	3016314		Cover, Wire		Appelez-nous	-
32	5301314211		Switch-oven Light				$ 95.29
*50628	19100180210		Wiring Diagram (not For Purchase)		Appelez-nous	-
*50628	3016323		Insulation-wrap		Appelez-nous	-
*50628	3016319		Insulation-back		Appelez-nous	-
*50628	5300009126		Clip		Appelez-nous	-
