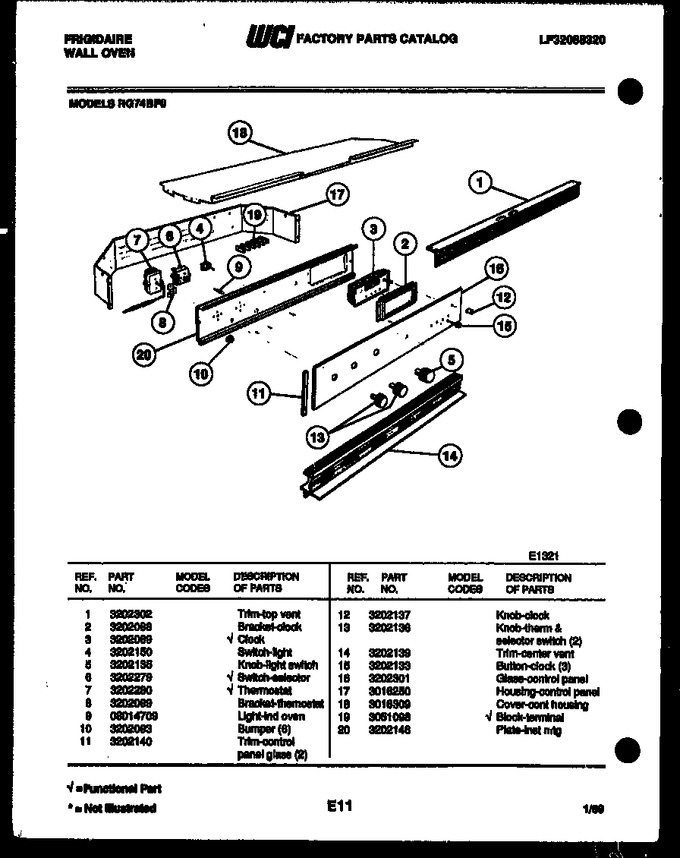

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202302 | Trim-top Vent |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3202089 | Clock |
|
- | |||||
| 4 | 3202150 | Switch-light |
|
- | |||||
| 5 | 3202135 | Knob-light Switch |
|
$ 48.67 | |||||
| 6 | 3202279 | Switch, Selector |
|
$ 181.86 | |||||
| 7 | 3202280 | Thermostat |
|
- | |||||
| 8 | 3202099 | Bracket-thermostat |
|
- | |||||
| 9 | 08014709 | Light-ind Oven |
|
- | |||||
| 10 | 3202093 | Bumper (6) |
|
- | |||||
| 11 | 3202140 | Trim, Control Panel Glass (2) |
|
- | |||||
| 12 | 3202137 | Knob-clock |
|
- | |||||
| 13 | 3202136 | Knob-therm & Selector Switch (2) |
|
$ 167.04 | |||||
| 14 | 3202139 | Trim, Center Vent |
|
- | |||||
| 15 | 3202133 | Button, Clock (3) |
|
- | |||||
| 16 | 3202301 | Glass, Control Panel |
|
- | |||||
| 17 | 3016250 | Housing-control Panel |
|
- | |||||
| 18 | 3016309 | Cover - Cont Housing |
|
- | |||||
| 19 | 3051098 | Block Terminal |
|
- | |||||
| 20 | 3202146 | Plate-inst Mtg |
|
- |
