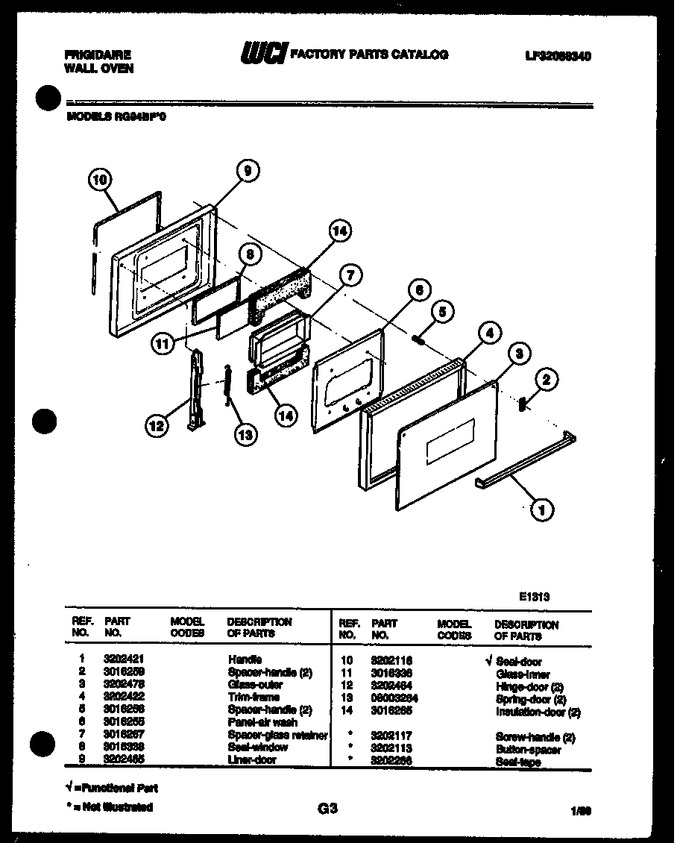

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202421 | Handle |
|
- | |||||
| 2 | 3016259 | Spacer-handle (2) |
|
- | |||||
| 3 | 3202478 | Glass-outer |
|
- | |||||
| 4 | 3202422 | Trim-frame |
|
- | |||||
| 5 | 3016256 | Spacer-handle (2) |
|
- | |||||
| 6 | 3016255 | Panel - Air Wash |
|
- | |||||
| 7 | 3016267 | Spacer-glass Retainer |
|
- | |||||
| 8 | 3016338 | Seal-window |
|
$ 43.20 | |||||
| 9 | 3202465 | Liner-door |
|
- | |||||
| 10 | 3202116 | Seal-door |
|
- | |||||
| 11 | 3016336 | Glass-inner |
|
- | |||||
| 12 | 3202464 | Hinge-door (2) |
|
- | |||||
| 13 | 08003264 | Spring-oven Door |
|
- | |||||
| 14 | 3016265 | Insulation-door (2) |
|
- | |||||
| *99121 | 3202117 | Screw-handle (2) |
|
- | |||||
| *99125 | 3202113 | Button-spacer |
|
- | |||||
| *99128 | 3202266 | Seal-tape |
|
- |
