02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Broiler Parts


06 - Drawer Parts


07 - Body Parts

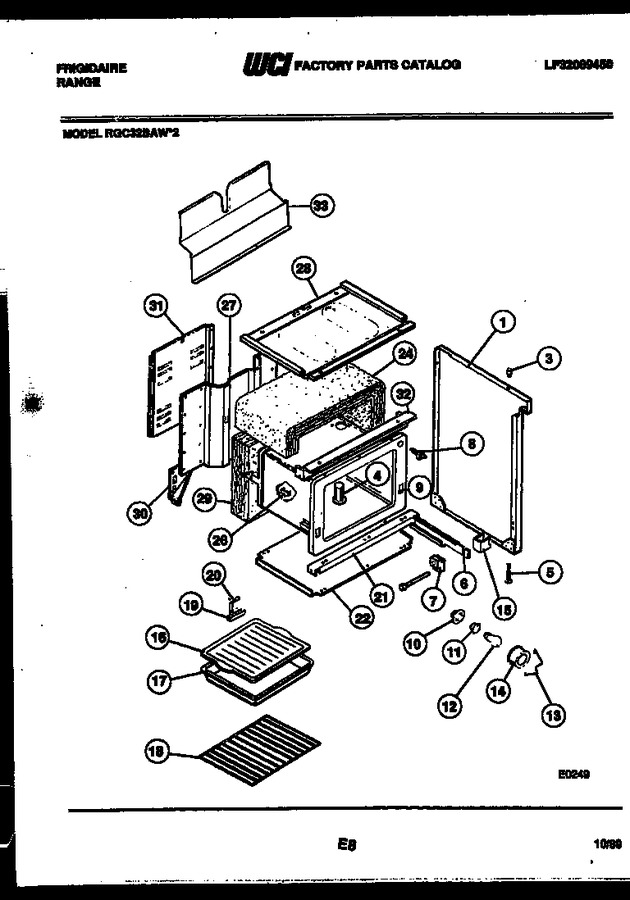

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	08012527		Side Pnl - Rh (white)		Appelez-nous	-
3	08003107		Bumper - Cooktop (4)		Appelez-nous	-
4	08012541		Vent-tube		Appelez-nous	-
5	3205294		Leg, Leveller (4)		Appelez-nous	-
6	08015746		Rail - Drawer Rh		Appelez-nous	-
7	3051654		Guide - Drwr Front (2)		Appelez-nous	-
8	08015948		Switch - Oven Light		Appelez-nous	-
9	K1317841		Oven Liner		Appelez-nous	-
10	3051511		Cup, Oven Light				$ 60.22
11	08011085		Receptacle - Light		Appelez-nous	-
12	3013071		Light Bulb		Appelez-nous	-
13	08011087		Retainer - Lens		Appelez-nous	-
14	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 15.61
15	08011055		Spacer - Drwr Rail (2)		Appelez-nous	-
16	3205234		Grille, Broiler		Appelez-nous	-
17	3205232		Pan, Broiler		Appelez-nous	-
18	3131973		Rack-oven Regular (2)		Appelez-nous	-
19	06563359		Terminal Block		Appelez-nous	-
20	08003146		Strap - Ground		Appelez-nous	-
21	3200927		Channel - Oven Support Lower		Appelez-nous	-
22	3203574		Panel - Bottom		Appelez-nous	-
24	3051521		Insulation - Oven Wrap		Appelez-nous	-
26	3051552		Brkt, Thermobulb		Appelez-nous	-
27	3017575		Back - Range		Appelez-nous	-
28	08012542		Panel - Subtop		Appelez-nous	-
29	3051630		Insulation-oven Back		Appelez-nous	-
30	3017481		Gusset-rear, Rh		Appelez-nous	-
31	3015856		Cover - Wire		Appelez-nous	-
32	3200926		Channel-oven Sprt.		Appelez-nous	-
33	3017602		Shield - Wire		Appelez-nous	-
*27143	3934063		Anti-tip Kit		Appelez-nous	-
1A	08012528		Side Pnl - Lh (white)		Appelez-nous	-
30A	3017482		Gusset-rear, Lh		Appelez-nous	-
6A	3051652		Rail, Drawer Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
