02 - Control Panel
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:

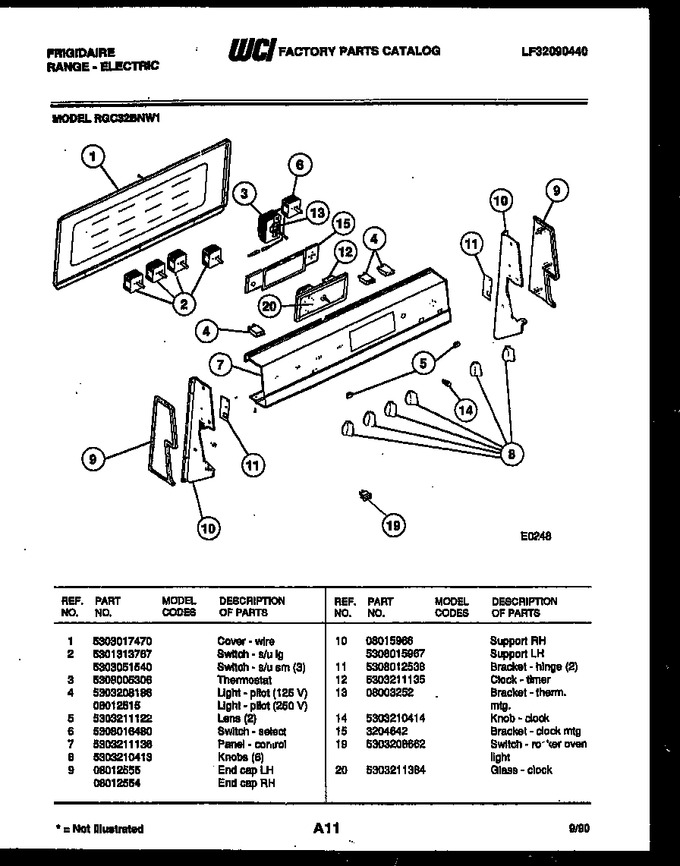

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017470 | Cover, Wire. |
|
- | |||||
| 2 | 5301313767 | Switch, S/u Lg. |
|
- | |||||
| 3 | 5308005306 | Thermostat |
|
- | |||||
| 4 | 5303208186 | Light - Pilot (125 V) |
|
- | |||||
| 5 | 5303211122 | Lens (2) |
|
- | |||||
| 6 | 5308016480 | Switch - Select |
|
$ 402.15 | |||||
| 7 | 5303211136 | Panel - Control |
|
- | |||||
| 8 | 5303210413 | Knobs (6) |
|
- | |||||
| 9 | 08012555 | End Cap, Lh |
|
- | |||||
| 10 | 08015966 | Support Rh |
|
- | |||||
| 11 | 5308012538 | Bracket, Hinge (2) |
|
- | |||||
| 12 | 5303211135 | Clock - Timer |
|
- | |||||
| 13 | 08003252 | Bracket - Thermostat |
|
- | |||||
| 14 | 5303210414 | Knob, Clock |
|
- | |||||
| 15 | 3204642 | Bracket-clock Mtg |
|
- | |||||
| 19 | 5303208662 | Switch - Rocker Oven Light |
|
- | |||||
| 20 | 5303211384 | Glass-clock |
|
- | |||||
| 10A | 5308015967 | Support - Lh |
|
- | |||||
| 2A | 5303051540 | Switch - S/u Sm. (3) |
|
- | |||||
| 4A | 08012515 | Light - Pilot (250 V) |
|
- | |||||
| 9A | 08012554 | End Cap, Rh |
|
- |
