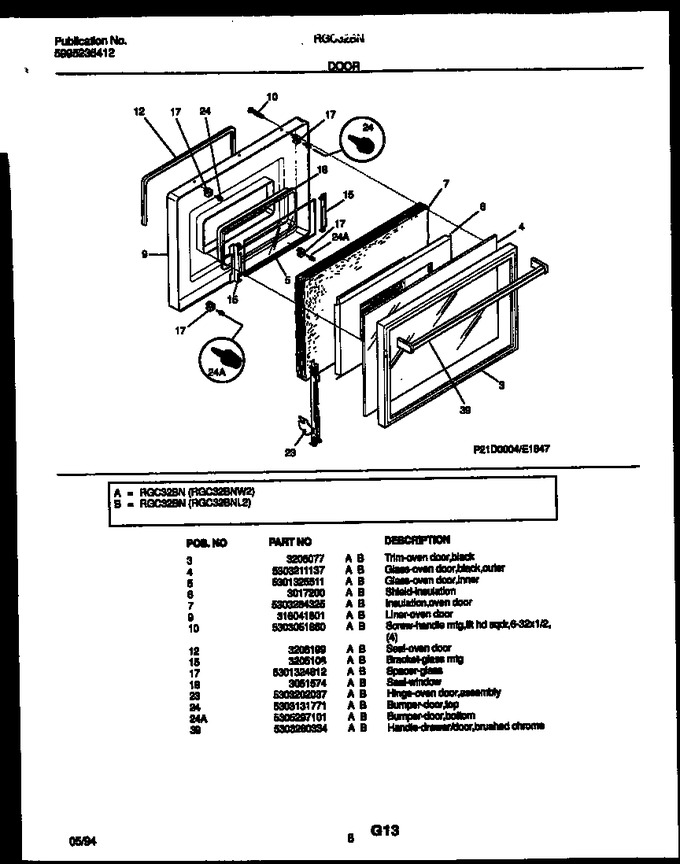

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Body Parts
04 - Cooktop And Drawer Parts
05 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 3206077 | Trim-oven Door, Black |
|
- | |||||
| 4 | 5303211137 | Glass-oven Door, Black, Outer |
|
- | |||||
| 5 | 5301325511 | Glass-oven Door, Inner |
|
- | |||||
| 6 | 3017200 | Shield-insulation |
|
- | |||||
| 7 | 5303284325 | Insulation, Oven Door |
|
- | |||||
| 9 | 316041801 | Liner-oven Door |
|
- | |||||
| 10 | 5303051860 | Screw-handle Mtg, Flt Hd Sqdr, 6-32 X 1/2, (4) |
|
- | |||||
| 12 | 3206199 | Seal-oven Door |
|
- | |||||
| 15 | 3205108 | Bracket-glass Mtg |
|
- | |||||
| 17 | 5301324812 | Spacer-glass |
|
- | |||||
| 18 | 3051574 | Seal Window |
|
$ 36.58 | |||||
| 23 | 5303202037 | Hinge-oven Door, Assembly |
|
- | |||||
| 24 | 5303131771 | Bumper-door, Top |
|
- | |||||
| 39 | 5303280334 | Handle-drawer/door, Brushed Chrome |
|
- | |||||
| 24A | 5305297101 | Bumper-door, Bottom |
|
- |
