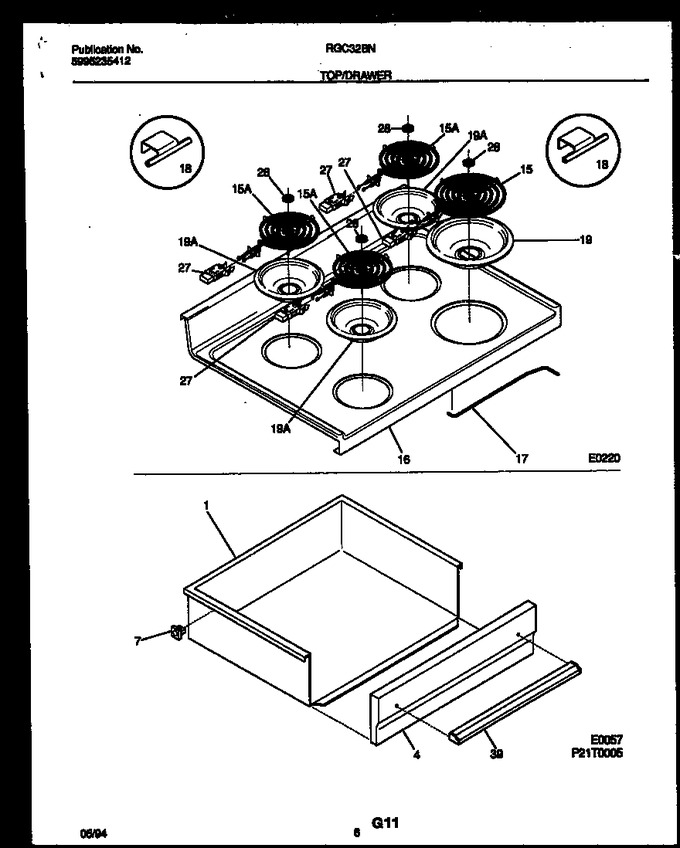

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Body Parts
04 - Cooktop And Drawer Parts
05 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308011051 | Drawer-utility |
|
- | |||||
| 4 | 5308011056 | Panel-drawer, White |
|
- | |||||
| 7 | 5303209487 | Glide-drawer, Rear |
|
- | |||||
| 15 | 316442301 | Element-surface, Large/8 Inch (Replaces: 5303012223) |
|
Immediately | $ 44.39 | ||||
| 16 | 5303210999 | Main Top, White |
|
- | |||||
| 17 | 5303211119 | Rod-maintop Support, Rh |
|
- | |||||
| 18 | 08012537 | Hinge Pin |
|
- | |||||
| 19 | 316048413 | Pan-surface Element, Large/8 Inch (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 27 | 5303935058 | Terminal Block Kit, Surface Element (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 28 | 5303017715 | Medallion, 1 1/2`` Dia, Surface Element |
|
$ 64.46 | |||||
| 39 | 5303280334 | Handle-drawer/door, Brushed Chrome |
|
- | |||||
| 15A | 318372211 | Element-surface, Small/6 Inch (Replaces: 08067762) |
|
Immediately | $ 45.14 | ||||
| 17A | 3051050 | Screw-shoulder, (non-illustrated) |
|
$ 12.29 | |||||
| 17B | 5303211120 | Rod-maintop Support, Lh, (non-illustrated) |
|
- | |||||
| 19A | 316048414 | Pan-surface Element, Small / 6 Inch (Replaces: 5303280336) |
|
Immediately | $ 16.11 |
