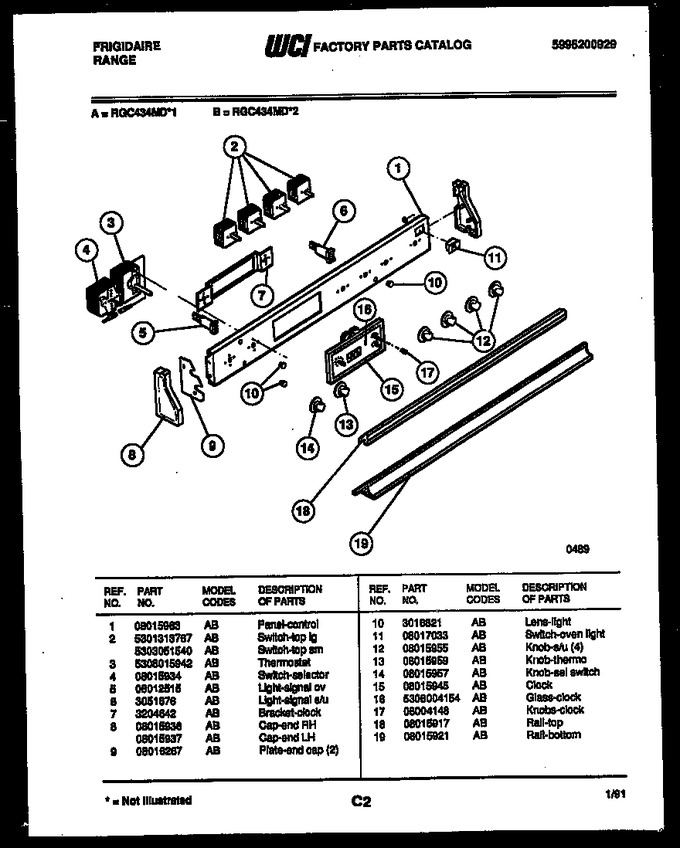

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08015963 | Panel-control |
|
- | |||||
| 2 | 5301313767 | Switch-top Lg |
|
- | |||||
| 3 | 5308015942 | Thermostat |
|
- | |||||
| 4 | 08015934 | Switch, Selector |
|
- | |||||
| 5 | 08012515 | Light-signal Ov |
|
- | |||||
| 6 | 3051676 | Light-signal S/u |
|
- | |||||
| 7 | 3204642 | Bracket-clock |
|
- | |||||
| 8 | 08015936 | Cap, End Rh |
|
- | |||||
| 9 | 08016267 | Plate, End Cap (2) |
|
- | |||||
| 10 | 3016821 | Lens-light |
|
- | |||||
| 11 | 08017033 | Switch-oven Light |
|
- | |||||
| 12 | 08015955 | Knob, S/u (4) |
|
- | |||||
| 13 | 08015959 | Knob-thermo |
|
- | |||||
| 14 | 08015957 | Knob-sel Switch |
|
- | |||||
| 15 | 08015945 | Clock |
|
- | |||||
| 16 | 5308004154 | Glass, Clock |
|
- | |||||
| 17 | 08004148 | Knobs-clock |
|
- | |||||
| 18 | 08015917 | Rail, Top |
|
- | |||||
| 19 | 08015921 | Rail, Bottom |
|
- | |||||
| 2A | 5303051540 | Switch-top Sm |
|
- | |||||
| 8A | 08015937 | Cap, End Lh |
|
- |
