SELECT A DIAGRAM

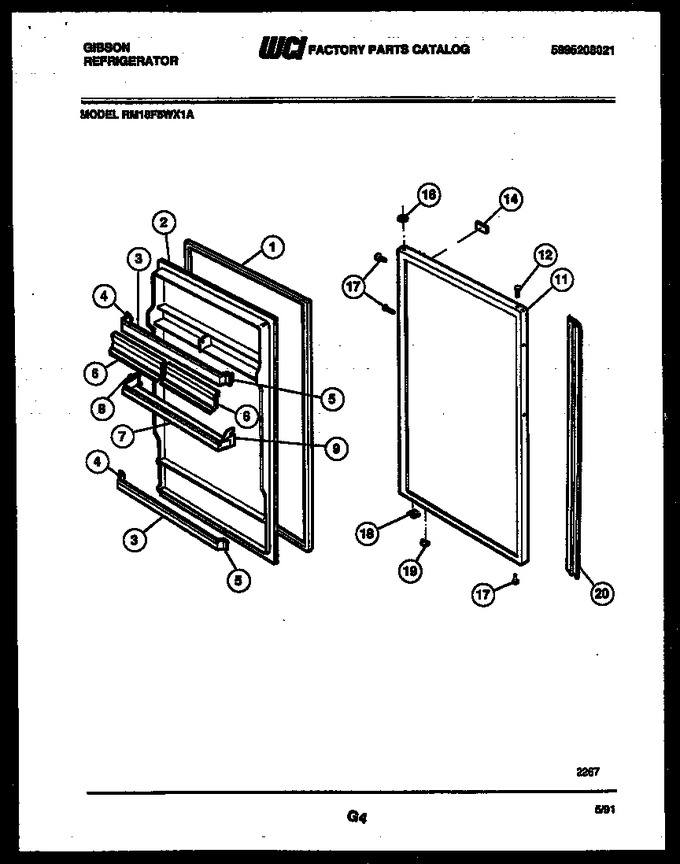

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303007357		Gasket-refrigerator		Appelez-nous	-
2	5303274952		Panel-inner Door		Appelez-nous	-
3	5303274949		Rack-upper And Lower (3)		Appelez-nous	-
4	5303204690		Support Lh (3)		Appelez-nous	-
5	5303204689		Support Rh (3)		Appelez-nous	-
6	5303274948		Dairy Door (2)		Appelez-nous	-
7	5303274951		Rack-shelf-center (2)		Appelez-nous	-
8	5303206685		End Cap-lh (2)		Appelez-nous	-
9	5303206684		End Cap-rh (2)		Appelez-nous	-
11	5303916938		Door-almond		Appelez-nous	-
11	5303916937		Door-wheat		Appelez-nous	-
11	5303916936		Door-white		Appelez-nous	-
12	5308000134		Plug-hinge Hole-white				$ 5.62
12	5308000176		Plug-hinge Hole-wheat		Appelez-nous	-
12	5303001308		Plug-hinge Hole-almd		Appelez-nous	-
14	5303272505		Nameplate		Appelez-nous	-
16	5308012007		Bearing-hinge (4)		Appelez-nous	-
17	5308000181		Plug - Almond		Appelez-nous	-
17	5308000180		Plug - Wheat		Appelez-nous	-
17	240494001		Plug - White   (Replaces: 5308000090)			Immediately	$ 18.20
18	5308000255		Door Stop				$ 42.20
19	5308000790		Bumper, Light Switch				$ 3.86
20	5303274950		Handle Assy		Appelez-nous	-
*46562	5308011745		Screw				$ 10.38
*46562	5303007739		Insulation, Bulk		Appelez-nous	-
18A	5308011745		Screw				$ 10.38
19A	5308002748		Screw		Appelez-nous	-
2A	5308002748		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
