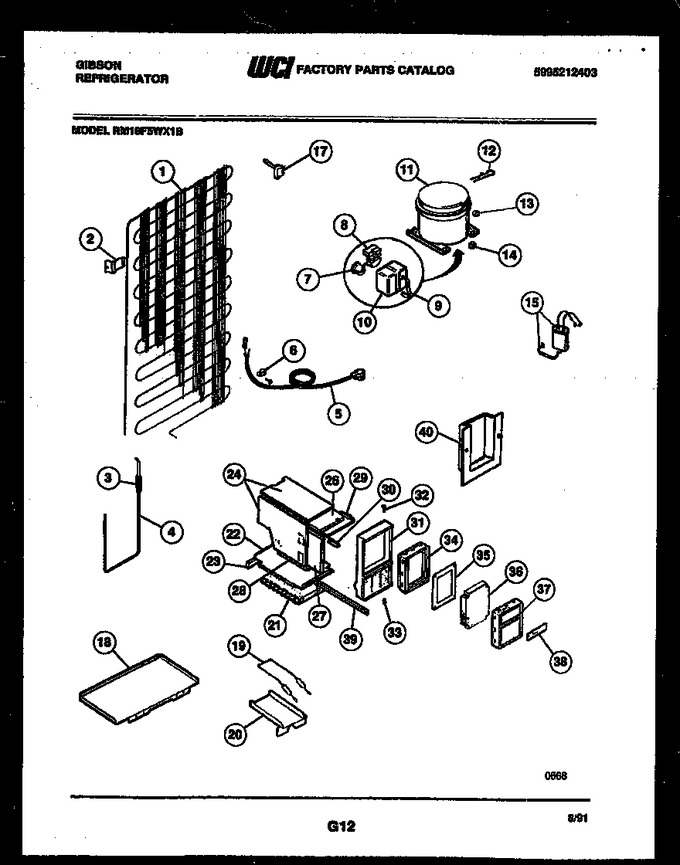

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G000189439 | Condenser |
|
- | |||||
| 2 | 5303001342 | Bracket, Cond Mtg (4) |
|
- | |||||
| 3 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 4 | 5308000021 | Heat Exchanger |
|
- | |||||
| 5 | 5316254901 | Service Cord |
|
- | |||||
| 6 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 7 | 3201680 | Overload |
|
- | |||||
| 8 | 5303007173 | Relay |
|
$ 207.43 | |||||
| 9 | 5303006412 | Clamp Cover |
|
- | |||||
| 10 | 5303006411 | Cover, Terminal |
|
- | |||||
| 11 | 5303916007 | Compressor With Electricals |
|
- | |||||
| 12 | 5308003596 | Clip-compr Mtg (4) |
|
$ 6.62 | |||||
| 13 | 5308003633 | Washer-compr Mtg (4) |
|
$ 35.67 | |||||
| 14 | 5308008778 | Grommet, Compr Mtg, (4) |
|
- | |||||
| 15 | 5303916391 | Capacitor-run |
|
- | |||||
| 17 | 5303917954 | Thermostat-defrost (Replaces: 5316269001) |
|
Immediately | $ 30.47 | ||||
| 18 | 5300172513 | Plate-defrost |
|
- | |||||
| 19 | 5300187141 | Heater-defrost |
|
- | |||||
| 20 | 3007378 | Shield-heater |
|
- | |||||
| 21 | 5303015180 | Evaporator |
|
- | |||||
| 22 | 08008749 | Bottom-freezer |
|
- | |||||
| 23 | 5300170779 | Insulation Block-evap |
|
- | |||||
| 24 | 3017661 | Housing-outer Liner Top & Side |
|
- | |||||
| 26 | 5308008753 | Insulation-frzr-upper |
|
- | |||||
| 27 | 5308008754 | Insulation-frzr-middle |
|
- | |||||
| 28 | 5308008755 | Insulation Frzr-lower |
|
- | |||||
| 29 | 08008756 | Housing-inner Liner |
|
- | |||||
| 30 | 08008766 | Magnet-housing |
|
- | |||||
| 31 | 5303274959 | Panel-front |
|
- | |||||
| 32 | 5308008765 | Hinge Pin-upper |
|
- | |||||
| 33 | 5308008767 | Hinge Pin-lower |
|
- | |||||
| 34 | 08008769 | Door Evap-inner |
|
- | |||||
| 35 | 5308008771 | Gasket-door |
|
- | |||||
| 36 | 08008770 | Insulation-door |
|
- | |||||
| 37 | 5303274960 | Door Evap-outer |
|
- | |||||
| 38 | G186147 | Label-evap Door |
|
- | |||||
| 39 | 5317053302 | Gasket-freezer |
|
- | |||||
| 40 | 5303001197 | Cover-wiring |
|
- | |||||
| *45748 | 08008781 | Wiring Harness-compr W/light Switch |
|
- | |||||
| *45748 | 5308009645 | Insulator-evaporator |
|
- | |||||
| *45748 | 08002769 | Button Plug 1-1/64-frzr |
|
- | |||||
| *45749 | 5300169964 | Insulation-front |
|
- | |||||
| *45749 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| *45749 | 5308000039 | Screw |
|
- | |||||
| *45749 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| *45749 | 5300172384 | Button Plug-1-1/2-frzr |
|
- | |||||
| *45749 | 3006636 | Insulator-moisture Barrier |
|
- | |||||
| *45750 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 18A | 08000099 | Clip-defrost |
|
- | |||||
| 19A | 5308000110 | Strap-heater (non-illustrated) |
|
Immediately | $ 59.82 | ||||
| 22A | 5308008750 | Insulation-freezer Bot (non-illustrated) |
|
- | |||||
| 2A | 5308000039 | Screw |
|
- | |||||
| 2B | 5308009617 | Washer, No. 10 Ext Tooth Lock (non-illustrated) |
|
- | |||||
| 31A | 5300171694 | Insulation-front Panel (non-illustrated) |
|
- |
