SELECT A DIAGRAM

01 - Front Panel Parts


02 - Tub Parts


03 - Wash System Parts


04 - Upper And Lower Dishrack Parts

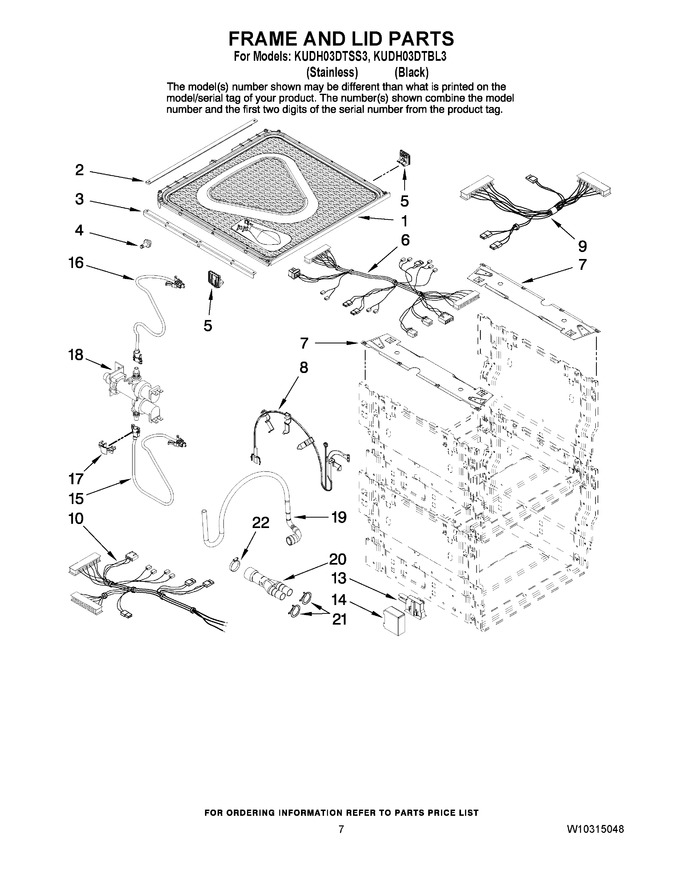

05 - Frame And Lid Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP99003677		Lid Assembly (seal Included)   (Replaces: 99003677)				$ 324.15
2	Y6920305		Bracket, Lid (rear)		Appelez-nous	-
3	99003722		Bracket, Lid Assy. (side)		Appelez-nous	-
4	99003724		Roller, Lid Pin				$ 11.20
5	99003726		Lid Slider Assy. (left Hand)				$ 52.63
5	99003725		Lid Slider Assy. (right Hand)				$ 76.87
6	99003706		Harness, Drawer				$ 182.02
7	W10258863		Brace, Top Side (undercounter Mounting Bracket)		Appelez-nous	-
8	WPW10166505		Retainer, Flex   (Replaces: W10166505)				$ 28.76
9	99003710		Harness, Upper				$ 207.52
10	99003709		Harness, Lower				$ 100.17
13	99003732		Base, Utility Box		Appelez-nous	-
14	W10258867		Cover, Utility Box		Appelez-nous	-
15	99003766		Hose, Fill (lower)				$ 68.49
16	WP99003765		Hose, Fill (upper)   (Replaces: 99003765)				$ 62.45
17	W10189242		Retainer, Valve End				$ 8.16
18	WPW10186746		Valve, Water   (Replaces: W10186746)				$ 225.70
19	WPW10171147		Hose, Drain   (Replaces: W10171147)				$ 109.68
20	W10181336		Y- Connector				$ 81.39
21	WP616099		Clamp   (Replaces: 99003633)			Immediately	$ 7.03
22	WP596669		Clamp   (Replaces: 99003635)			Immediately	$ 7.56
