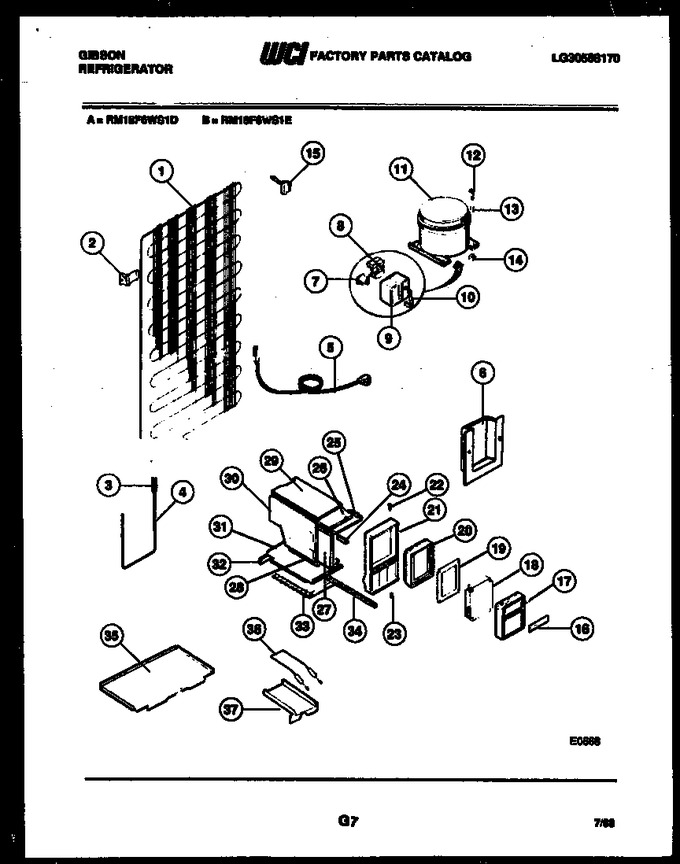

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G189439 | Condenser |
|
- | |||||
| 2 | G164637 | Bracket, Cond. Mtg. (4) |
|
- | |||||
| 3 | G186717 | Drier-filter |
|
- | |||||
| 4 | G170983 | Heat Exchanger |
|
- | |||||
| 5 | G162549-01 | Service Cord |
|
- | |||||
| 6 | G183584 | Cover, Wiring |
|
- | |||||
| 7 | G187544 | Overload |
|
- | |||||
| 8 | G182225-15 | Relay |
|
- | |||||
| 9 | G166056 | Cover, Terminal |
|
- | |||||
| 10 | G166057 | Strap-cover Mounting |
|
- | |||||
| 11 | 3916008 | Compressor With Electricals |
|
- | |||||
| 12 | G183344 | Screw (3) |
|
- | |||||
| 13 | G154588 | Sleeve (3) |
|
- | |||||
| 14 | G177617 | Grommet (4) |
|
- | |||||
| 15 | G162690-01 | Thermostat, Defrost |
|
- | |||||
| 16 | G186147 | Label-freezer Door |
|
- | |||||
| 17 | G169874-09 | Freezer Door-outer |
|
- | |||||
| 18 | G169965 | Insulation-door |
|
- | |||||
| 19 | G169975 | Gasket - Door |
|
- | |||||
| 20 | G169862 | Freezer Door-inner |
|
- | |||||
| 21 | G169891-01 | Front Panel-freezer |
|
- | |||||
| 22 | G169863 | Hinge Pin-upper |
|
- | |||||
| 23 | G170002 | Hinge Pin-lower |
|
- | |||||
| 24 | G171003 | Magnet, Housing |
|
- | |||||
| 25 | G169800 | Inner Liner-housing |
|
- | |||||
| 26 | G169831 | Insulation - Upper |
|
- | |||||
| 27 | G169832 | Insulation-middle |
|
- | |||||
| 28 | G169833 | Insulation - Lower |
|
- | |||||
| 29 | G171082 | Outer Liner-top |
|
- | |||||
| 30 | G171083 | Outer Liner-side |
|
- | |||||
| 31 | G169589 | Bottom Freezer |
|
- | |||||
| 32 | G170779 | Insulation Block |
|
- | |||||
| 33 | G189134 | Coil |
|
- | |||||
| 34 | G170533-02 | Gasket-freezer 3/8 (3) |
|
- | |||||
| 34 | G170533-04 | Gasket-freezer 3/4 (2) |
|
- | |||||
| 35 | G175411 | Defrost Plate |
|
- | |||||
| 36 | G187141 | Defrost Heater |
|
- | |||||
| 37 | G187142 | Shield, Heater |
|
- | |||||
| 13A | G164634 | Washer (4)-alternate Construction (non-illustrated) |
|
- | |||||
| 21A | G171694 | Insulation-panel (non-illustrated) |
|
- | |||||
| 25A | G170986-01 | Plug-liner 1-1/64 (non-illustrated) |
|
- | |||||
| 25B | G172384 | Plug-liner 1-1/2 (non-illustrated) |
|
- | |||||
| 25C | G187599 | Plug-liner 7/16 (3) (non-illustrated) |
|
- | |||||
| 2A | G160578 | Screw |
|
- | |||||
| 31A | G169969 | Insulation-bottom (non-illustrated) |
|
- | |||||
| 33A | G170487 | Insulation-moisture Barrier (non-illustrated) |
|
- | |||||
| 33B | G169954 | Insulation-wiring (non-illustrated) |
|
- | |||||
| 36A | G165546 | Strap, Heater (non-illustrated) |
|
- | |||||
| 5A | G169479 | Wiring Harness-compr And Lights (non-illustrated) |
|
- | |||||
| 7A | G188957 | Clip-overload (non-illustrated) |
|
- |
