Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4171570 Upper Rack Assembly (includes Items 2, 3, 4, 5 & 15) Appelez-nous -
2 4161226 Nut, Roller Appelez-nous -
3 9740879 Bearing & Spacer, Rack Roller Appelez-nous -
4 4161607 Roller, Upper Rack Track Special Order $ 8.60

5 4159426 Screw, 10-16 X 1 Appelez-nous -
6 4162442 Track, Rack Appelez-nous -
7 718829 Nut, Lock Appelez-nous -
9 9741062 Washer Appelez-nous -
10 718817 Washer, Cup Appelez-nous -
11 9740963 Roller, Rack Track Appelez-nous -
12 9740964 Screw. Track Roller Appelez-nous -
13 4171547 Bumper, Rack Track Appelez-nous -
14 4160423 Stud, Bumper Retaining Appelez-nous -
15 4162048 Bumper, Upper Rack Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

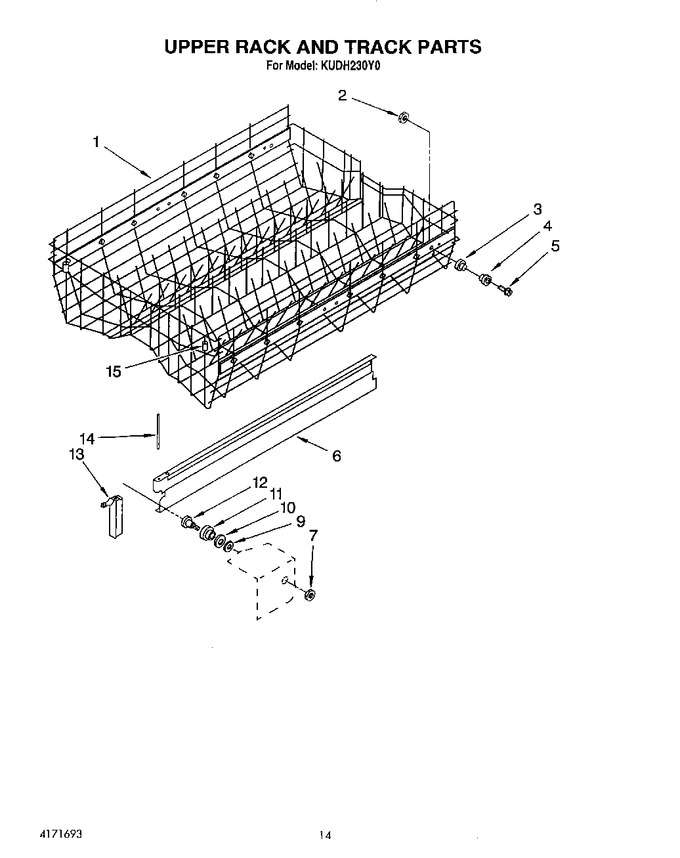

Diagram for KUDH230Y0
