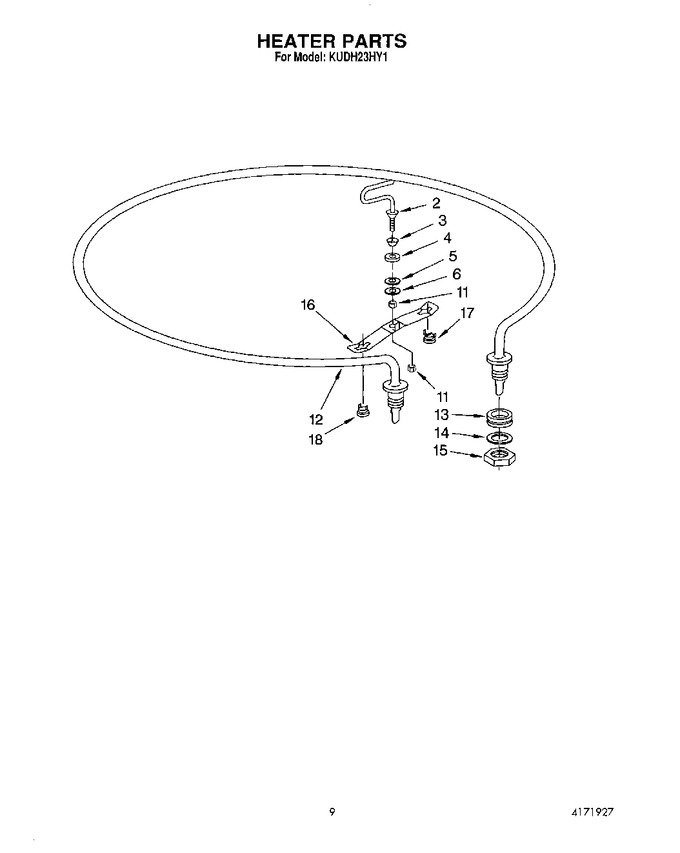

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 4163549 | Hook, Heater Element |
|
- | |||||
| 3 | 4159477 | Washer |
|
- | |||||
| 4 | 4160051 | Washer, Sealing |
|
- | |||||
| 5 | 4159567 | Washer |
|
- | |||||
| 6 | 4159583 | Washer |
|
- | |||||
| 11 | 718829 | Locknut |
|
- | |||||
| 12 | 9740416 | Element, Heater |
|
- | |||||
| 13 | 4162521 | Grommet, Heater Element |
|
- | |||||
| 14 | 4163554 | Washer, Heater Element |
|
- | |||||
| 15 | 718537 | Nut, Heater Element |
|
- | |||||
| 16 | 9741192 | Bracket, Thermostat |
|
- | |||||
| 17 | WP661566 | Protector (Replaces: 4171694) |
|
Immediately | $ 28.15 | ||||
| 18 | 9741196 | Thermostat |
|
- |
