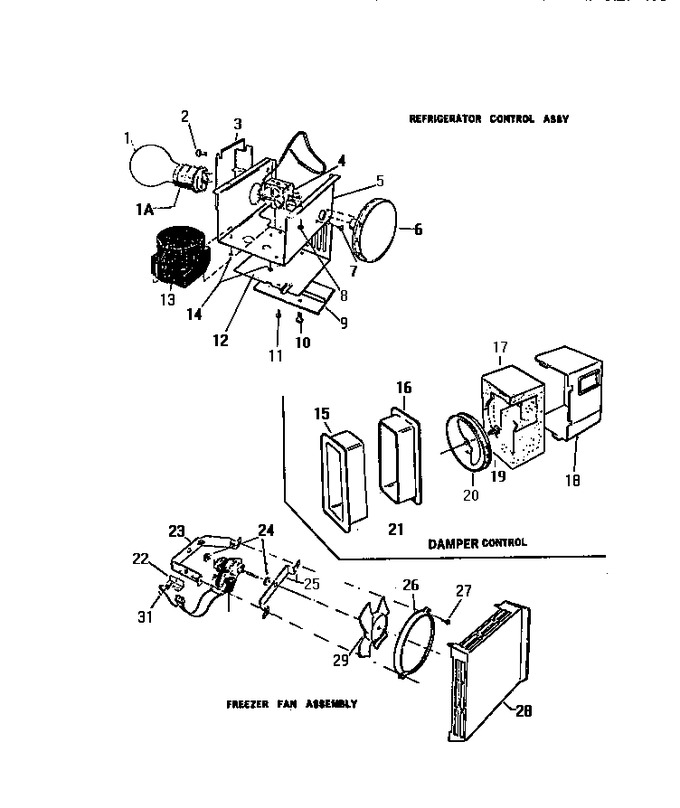

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Q63749		Bulb		Appelez-nous	-
2	G165545		Stud Mounting (plastic) (2)		Appelez-nous	-
3	G165543		Bracket, Cont. Cap Mounting		Appelez-nous	-
4	G162667-07		Control, Temp.		Appelez-nous	-
5	G164788		Bracket, Cont. Mounting		Appelez-nous	-
6	G164906-01		Knob, Control, Temp.		Appelez-nous	-
7	G107060		Screw, Thermo. Mounting (2)		Appelez-nous	-
8	G166567		Screw, Bracket Mounting		Appelez-nous	-
9	G166068		Cover, Plastic		Appelez-nous	-
10	G165545		Stud Mounting (plastic)		Appelez-nous	-
11	G160578		Screw		Appelez-nous	-
12	G164778		Cover Cont. Bracket		Appelez-nous	-
13	G158291		Timer		Appelez-nous	-
14	G107080		Screw		Appelez-nous	-
15	G166802		Ferrule-fc		Appelez-nous	-
16	G166803		Ferrule-pc		Appelez-nous	-
17	G164575		Deflector , Air (foam)		Appelez-nous	-
18	G164523		Box, Damper Cont.		Appelez-nous	-
19	G158261		Clip, Knob Mounting		Appelez-nous	-
20	G165217-01		Knob, Damper Cont.		Appelez-nous	-
21	G167582		Gasket		Appelez-nous	-
22	G164571		Bracket, Connector		Appelez-nous	-
23	G162048		Bracket, Motor Mounting, Rear		Appelez-nous	-
24	G157666		Bushing (2)		Appelez-nous	-
25	G162049		Bracket, Motor Mounting, Front		Appelez-nous	-
26	G167217		Ring, Fan Orifice		Appelez-nous	-
27	G163980		Screw, Motor Bracket Mounting (2)		Appelez-nous	-
28	G164654-01		Cover		Appelez-nous	-
29	G126599		Fan Blade		Appelez-nous	-
30	G158289		Motor, Fc		Appelez-nous	-
31	G136150		Screw Cover Mounting		Appelez-nous	-
1A	G157160		Socket		Appelez-nous	-
23A	G162703		Clip, Grounding		Appelez-nous	-
