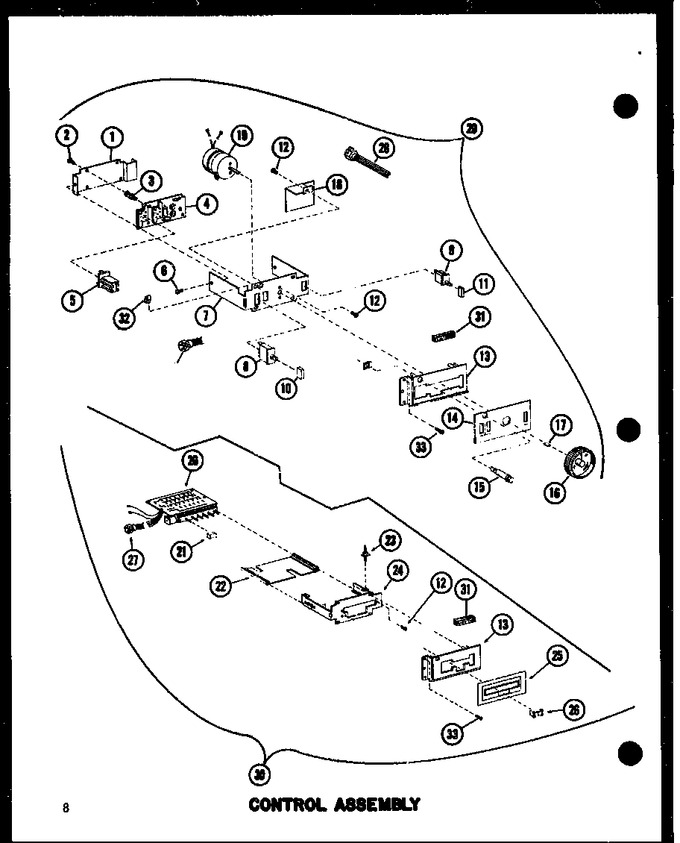

01 - Control Assy


02 - Page 1


03 - Page 3


04 - Page 4


05 - Page 5


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5722201		Bracket-pc Board A		Appelez-nous	-
2	M0204340		Screw K		Appelez-nous	-
3	M0580502		Support K		Appelez-nous	-
4	C8714101		Circuit Board A		Appelez-nous	-
5	C8710303		Relay A		Appelez-nous	-
5	C8710302		Relay A		Appelez-nous	-
6	M0218115		Screw		Appelez-nous	-
7	C8714002		Brkt Dial Timer A		Appelez-nous	-
8	B5715401		Switch Pb A		Appelez-nous	-
9	B5674701		Switch		Appelez-nous	-
10	B5674003		Button Defrost		Appelez-nous	-
11	B5674001		Button Stop A		Appelez-nous	-
11	B5674002		Button Start A		Appelez-nous	-
12	M0202502		Screw		Appelez-nous	-
13	C8713901		Escutcheon Timer A		Appelez-nous	-
14	B5722404		Thin Plate Dial A		Appelez-nous	-
15	A3184401		Pilot Light A		Appelez-nous	-
16	D7028702		Knob A		Appelez-nous	-
17	M0117001		Clip		Appelez-nous	-
18	B5782701		Barrier A		Appelez-nous	-
19	C3680404		Timer-dial A		Appelez-nous	-
27	R0164011		Socket Assy		Appelez-nous	-
28	C8732301		Wiring Harness A		Appelez-nous	-
29	D7249602		Dial Timer Assy		Appelez-nous	-
32	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
33	M0253218		Screw		Appelez-nous	-
