SELECT A DIAGRAM

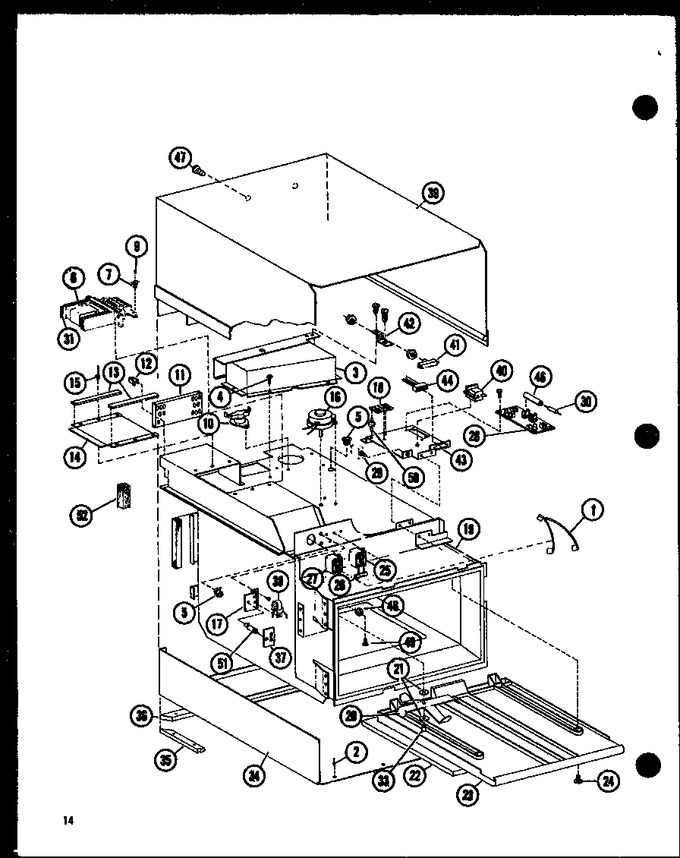

01 - Control Assy
02 - Page 1
03 - Page 3
04 - Page 4
05 - Page 5
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C3655860 | Jumper Wire |
|
- | |||||
| 2 | A4539602 | Pop Rivet |
|
- | |||||
| 3 | D7262902 | Air Duct Wld |
|
- | |||||
| 4 | M0218115 | Screw |
|
- | |||||
| 5 | A4554806 | Snap Bushing |
|
- | |||||
| 6 | C8720505 | Assembly, Isolator, With Gaske |
|
- | |||||
| 7 | B5684102 | Thermal Protector |
|
- | |||||
| 7 | B5684106 | Thermal Protector |
|
- | |||||
| 9 | M0234114 | Screw |
|
- | |||||
| 10 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 11 | A3184901 | X$x End W-g |
|
- | |||||
| 12 | M0113503 | Clip |
|
- | |||||
| 13 | B5718903 | Gasket K |
|
- | |||||
| 14 | B5714101 | Cover-isolator |
|
- | |||||
| 15 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 16 | B5602809 | Motor |
|
- | |||||
| 17 | A3230402 | Brkt-time Delay |
|
- | |||||
| 18 | B5691003 | Time Delay |
|
- | |||||
| 19 | D7265703 | Oven Wld |
|
- | |||||
| 20 | C8708601 | Stirrer Blade (antenna) |
|
- | |||||
| 21 | A3109101 | Washer |
|
- | |||||
| 22 | B5748801 | Tray, Oven |
|
- | |||||
| 23 | D7238301 | Grease Shield Kit |
|
- | |||||
| 24 | A3245601 | Screw Retainer |
|
- | |||||
| 25 | R0159006 | Relay Kit |
|
- | |||||
| 26 | M0305007 | Resistor, Relay A |
|
- | |||||
| 27 | C3669601 | Relay Kit |
|
- | |||||
| 28 | B5751401 | Board-multiprotector |
|
- | |||||
| 29 | M0341301 | Circuit Breaker |
|
- | |||||
| 30 | M0308103 | Fuse |
|
- | |||||
| 31 | A3225401 | Gasket K |
|
- | |||||
| 31 | A3225402 | Gasket K |
|
- | |||||
| 33 | M0114002 | Clip |
|
- | |||||
| 34 | D7262401 | 0c Bottom Wld |
|
- | |||||
| 35 | C8732601 | Gasket |
|
- | |||||
| 36 | C8732602 | Gasket |
|
- | |||||
| 37 | C8770601 | Buzzer Control |
|
- | |||||
| 38 | B5787001 | Buzzer |
|
- | |||||
| 39 | C8757503 | Top Assy |
|
- | |||||
| 40 | B5674306 | Relay |
|
- | |||||
| 41 | C8715202 | Switch Oc Intlk K |
|
- | |||||
| 42 | B5743701 | Bracket-switch |
|
- | |||||
| 43 | C8756501 | Mtg Plate |
|
- | |||||
| 44 | B5788301 | Wiring Harness |
|
- | |||||
| 46 | M0305402 | Resistor Fuse Kit |
|
- | |||||
| 47 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 48 | M0273612 | Washer |
|
- | |||||
| 49 | M0234025 | Screw |
|
- | |||||
| 50 | B5675501 | Supt Ckt Bd A |
|
- | |||||
| 51 | B5763401 | Support |
|
- | |||||
| 52 | A3030308 | Gasket |
|
- | |||||
| NI | M0275501 | Sealer |
|
- | |||||
| NI | M0218115 | Screw |
|
- | |||||
| NI | M0275560 | Rtv (blk) |
|
- | |||||
| NI | M0114002 | Clip |
|
- |
