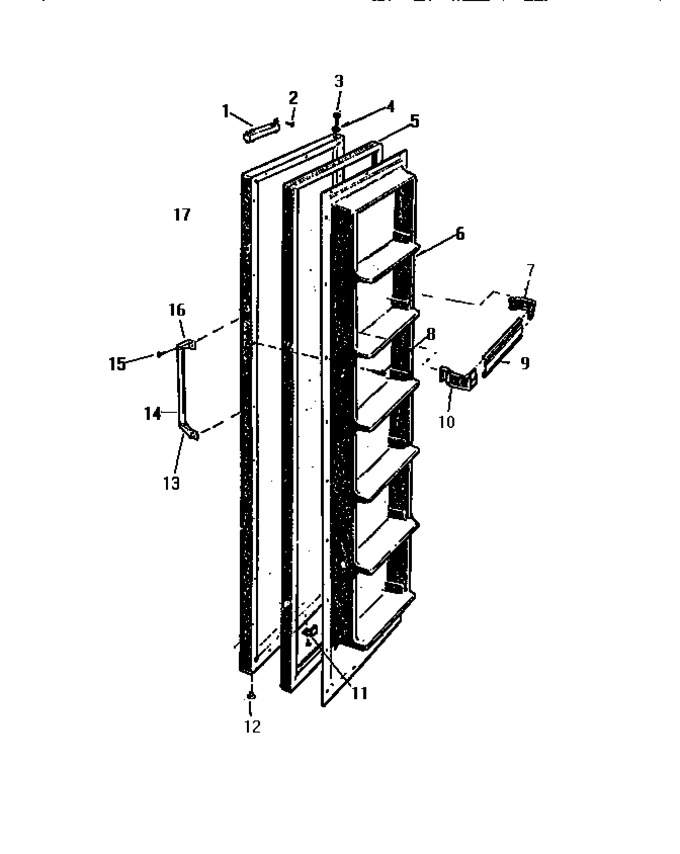

02 - Freezer Door


03 - Refrigerator Door


04 - Evaporator, Shelves, Crisper Pans


05 - Controls


06 - Shelves


07 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G161119		Closer		Appelez-nous	-
2	G189729		Screw		Appelez-nous	-
3	G186360		Thimble		Appelez-nous	-
4	G152473		Seal		Appelez-nous	-
5	G180551-03		Gasket		Appelez-nous	-
6	G164836-01		Inner Panel		Appelez-nous	-
7	G161081-01		End Cap, Rh		Appelez-nous	-
8	G144049		Screw		Appelez-nous	-
9	G1601019-16		Front (cut To Size)		Appelez-nous	-
10	G161080-01		End Cap, Lh		Appelez-nous	-
11	G186376		Bumper, Light Switch		Appelez-nous	-
12	G162889		Thimble		Appelez-nous	-
13	G175810		End Cap, Bottom		Appelez-nous	-
14	G175666-18		Handle (14`` Long)		Appelez-nous	-
15	C506715		Screw		Appelez-nous	-
16	G175809		End Cap, Top		Appelez-nous	-
17	G181985-08		Panel, Outer Door, Avocado		Appelez-nous	-
*95840	C69109		Insulation, Fiberglass Cut To Size-34`` X 48`` X 1/2`` Thic		Appelez-nous	-
*95841	C69110		Insulation Fiberglass Cut To Size-34`` X 48`` X 1`` Thick		Appelez-nous	-
*95842	C69111		Insulation Fiberglass Cut To Size-34`` X 48`` X 2`` Thick		Appelez-nous	-
*95843	C35536		Plastic Bag		Appelez-nous	-
*95850	4678371H22		Epoxy, White		Appelez-nous	-
*95851	G168328		Plastic Tape, Inner Panel Repair		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
