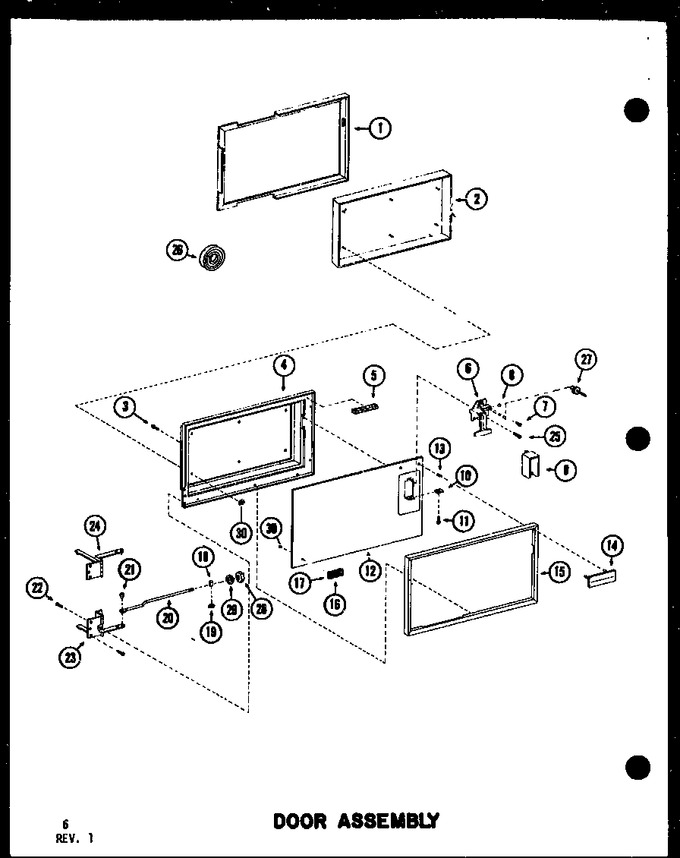

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7396401		Gasket		Appelez-nous	-
2	D7413802		Door, Inner		Appelez-nous	-
3	M0253418		Screw		Appelez-nous	-
4	D7132501		Weldment, Inner Door Ring		Appelez-nous	-
5	A4591121		Gasket		Appelez-nous	-
6	D7178504		Door Latch Assembly		Appelez-nous	-
7	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
8	A3195701		Guides Hndl K		Appelez-nous	-
9	B5671901		Bezel-door Handle		Appelez-nous	-
10	M0288102		Speed Nut		Appelez-nous	-
11	M0213817		Screw		Appelez-nous	-
12	D7178604		Panel-outer Door		Appelez-nous	-
13	M0113005		Clip Push On		Appelez-nous	-
14	C3668802		Escutcheon		Appelez-nous	-
15	D7132701		Outer Door Ring		Appelez-nous	-
16	B5694722		Insert-medallion		Appelez-nous	-
17	B5694901		Medallion		Appelez-nous	-
18	A3181801		Guide-door Stop		Appelez-nous	-
19	A3182101		Bushing		Appelez-nous	-
20	B5748702		Arm, Dr Stop K		Appelez-nous	-
21	A3185001		Bushing-door Arm		Appelez-nous	-
22	M0253230		Screw		Appelez-nous	-
23	C3666306		Hinge-bottom		Appelez-nous	-
24	C3666305		Hinge-top		Appelez-nous	-
25	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 12.78
26	M0275154		Tape Per Roll		Appelez-nous	-
26	M0275141		Tape, Gasket To Door, 1``		Appelez-nous	-
27	B5642906		Rivet, Pop (wht)		Appelez-nous	-
28	WP488130		Nut   (Replaces: M0282007)				$ 6.27
29	M0270501		Washer		Appelez-nous	-
30	M0288801		Nut K		Appelez-nous	-
