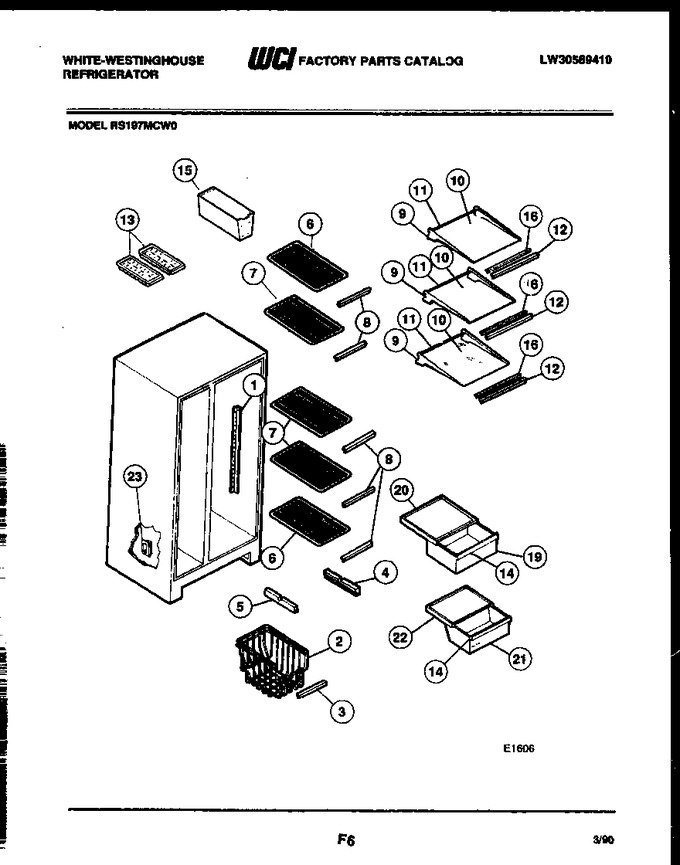

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308002744		Channel-shelf Mtg (2)		Appelez-nous	-
2	5308017594		Basket-freezer		Appelez-nous	-
3	5303207079		Trim-basket		Appelez-nous	-
4	5303001098		Hanger, Basket, Rh		Appelez-nous	-
5	5303001099		Hanger, Basket, Lh		Appelez-nous	-
6	08000905		Shelf (2)		Appelez-nous	-
7	08000906		Shelf (3)		Appelez-nous	-
8	5303207093		Trim-shelf (5)		Appelez-nous	-
9	3018644		Frame-shelf (4)		Appelez-nous	-
10	5303208973		Glass-shelf (4)		Appelez-nous	-
11	5303208971		Trim-rear Shelf Retnr (4)		Appelez-nous	-
12	5303208974		Trim-shelf Front (4)		Appelez-nous	-
13	5303001324		Ice Trays (2)		Appelez-nous	-
14	5303208892		Trim-pan (2)		Appelez-nous	-
15	5303207065		Ice Container		Appelez-nous	-
16	3018643		Retainer-glass (4)		Appelez-nous	-
19	5303208894		Pan-upper		Appelez-nous	-
20	5308008727		Cover-upper Pan		Appelez-nous	-
21	5303208970		Pan-lower		Appelez-nous	-
22	5316391601		Cover-lower Pan		Appelez-nous	-
23	5308000808		Ferrule-inner		Appelez-nous	-
*27964	5303206533		Hanging Egg Rack		Appelez-nous	-
*27964	G170910		Clip-cantilever Shelf (8)		Appelez-nous	-
*27964	5308016571		Plug-frzr Liner (3)				$ 4.79
*27965	5304509705		Grommet-frzr Shelf Mtg (10)   (Replaces: 5303001609)				$ 10.01
10A	5303208972		Rail-glass Supt (8) (non-illustrated)		Appelez-nous	-
1A	5308010253		Screw-channel Mtg (6) (non-illustrated)		Appelez-nous	-
20A	3018752		Gasket-cover (non-illustrated)		Appelez-nous	-
23A	5308000809		Ferrule-outer		Appelez-nous	-
23B	5303001280		Gasket-ferrule (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
