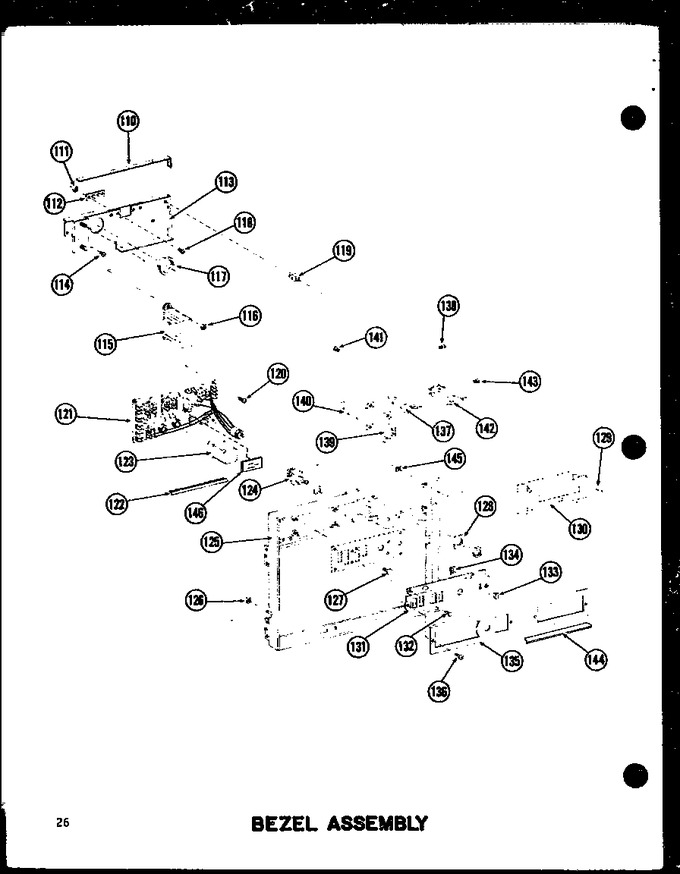

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
110	B5718903		Gasket K		Appelez-nous	-
111	M0281001		Nut-hex		Appelez-nous	-
112	A3225501		Terminal Board		Appelez-nous	-
113	B5719301		Wldmt-pc Bracket		Appelez-nous	-
114	M0218116		Screw		Appelez-nous	-
115	C3699401		Transformer		Appelez-nous	-
116	WP488130		Nut   (Replaces: M0282007)				$ 6.27
117	A4554802		Snap Bushing		Appelez-nous	-
118	M0202502		Screw		Appelez-nous	-
119	M0580203		Grommet		Appelez-nous	-
120	M0234117		Screw		Appelez-nous	-
121	C8712202		Pc Board-relay		Appelez-nous	-
122	B5715901		Guide-circuit Board		Appelez-nous	-
123	C8710301		Relay-pc Board		Appelez-nous	-
124	B5730101		Toggle Switch		Appelez-nous	-
125	D7133404		Bezel, Outer Case		Appelez-nous	-
126	M0283401		Nut, Self Thread		Appelez-nous	-
127	M0228016		Screw		Appelez-nous	-
128	A3225301		Plate-voltage		Appelez-nous	-
129	M0202516		Screw A		Appelez-nous	-
130	C8707601		Escutcheon-el Timer		Appelez-nous	-
131	C8707701		Escutcheon-di Timer		Appelez-nous	-
132	M0229004		Screw		Appelez-nous	-
133	A3229601		Lens-pilot Light		Appelez-nous	-
134	M0285801		Clip		Appelez-nous	-
135	C8708401		Escutcheon-control		Appelez-nous	-
136	M0215102		Screw, Phillips Oval Head		Appelez-nous	-
137	A3186401		Spring-latch		Appelez-nous	-
138	M0232012		Screw		Appelez-nous	-
139	C3680202		Strike-latch		Appelez-nous	-
140	B5675403		Bracket-latch		Appelez-nous	-
141	M0230017		Screw,tc		Appelez-nous	-
142	A3163406		Switch Preform		Appelez-nous	-
143	M0227525		Screw A-k		Appelez-nous	-
144	B5735201		Gasket-esc		Appelez-nous	-
145	M0288414		Speed Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
