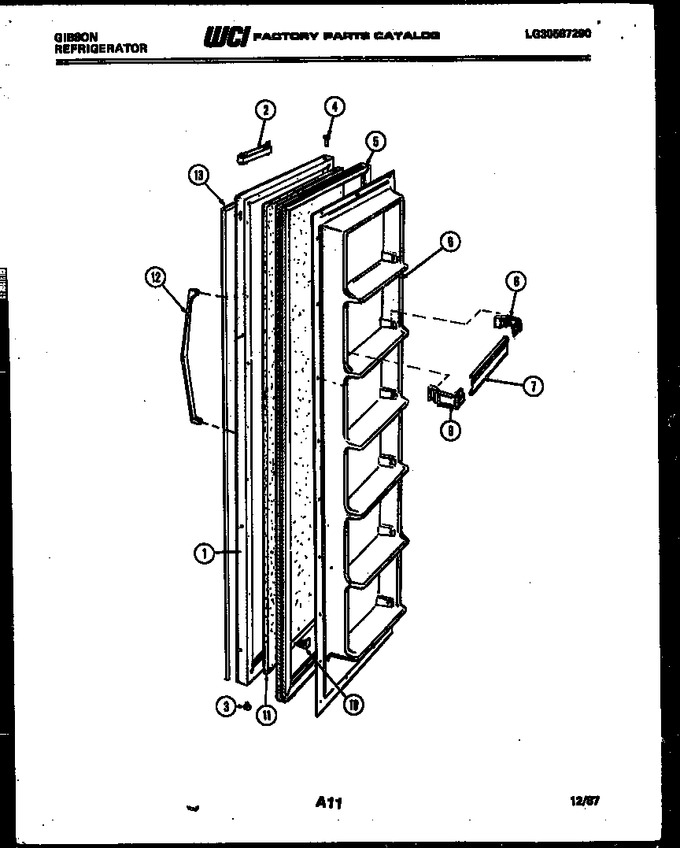

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G187978-09		Freezer Door-weat		Appelez-nous	-
1	G187978-10		Freezer Door-cofe		Appelez-nous	-
1	G187978-11		Freezer Door-almd		Appelez-nous	-
1	G187978		Freezer Door-whte		Appelez-nous	-
1	G187978-08		Freezer Door-avoc		Appelez-nous	-
2	G161119		Door Closer		Appelez-nous	-
3	G152308-01		Plug-door Btm		Appelez-nous	-
4	G183139		Hinge Bearing-upr		Appelez-nous	-
5	G180551-03		Gasket-freezer		Appelez-nous	-
6	G164821-02		Door Panel-inner		Appelez-nous	-
7	G154541-48		Door Rack (6)		Appelez-nous	-
8	G155104-07		Support Rs (6)		Appelez-nous	-
9	G155102-07		Support Ls (6)		Appelez-nous	-
10	G165376		Bumper-light Sw.		Appelez-nous	-
11	G89643		Insulation (bulk)		Appelez-nous	-
12	G163552-01		Door Handle		Appelez-nous	-
13	G167404-03		Trim-frzr Door		Appelez-nous	-
10A	G162585		Screw		Appelez-nous	-
12A	G185565		Screw-mtg (2) (non-illustrated)		Appelez-nous	-
12B	G176752		Shim-handle (2) (non-illustrated)		Appelez-nous	-
12C	G161863		Anchor Nut (2) (non-illustrated)		Appelez-nous	-
2A	G169729		Screw-mtg (non-illustrated)		Appelez-nous	-
4A	G183138		Hinge Bearing-lwr (non-illustrated)		Appelez-nous	-
6A	G162585		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
