SELECT A DIAGRAM

02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - Ice Door, Dispenser And Water Tank


08 - Ice Dispenser


09 - Ice Maker And Installation Parts


10 - System And Automatic Defrost Parts

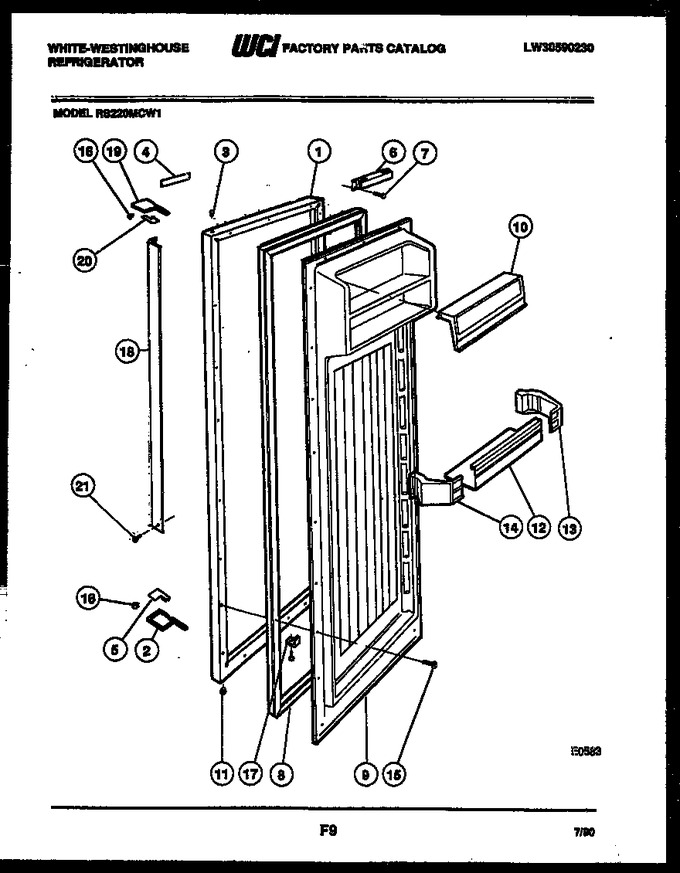

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916718		Refrigerator Door-almond		Appelez-nous	-
2	5300177143		End-bottom Handle		Appelez-nous	-
3	5303001022		Bearing-upper Hinge		Appelez-nous	-
4	3206159		Nameplate Assy		Appelez-nous	-
5	5300179271		Trim-bottom		Appelez-nous	-
6	5303200272		Door Closer		Appelez-nous	-
7	3001020		Screw-closer		Appelez-nous	-
8	5303205400		Gasket-refrigerator Door				$ 200.13
9	G179991-01		Panel-inner Door		Appelez-nous	-
10	5303207066		Dairy Door (2)		Appelez-nous	-
11	5308012007		Bearing-lower Hinge		Appelez-nous	-
12	5303207068		Door Shelf (5)				$ 16.96
13	5303204848		Support Rs (5)				$ 35.86
14	5303204849		Support Ls (5)				$ 21.11
15	218843801		Screw   (Replaces: 5303001001)				$ 14.41
16	5300177144		Clip-handle (4)		Appelez-nous	-
17	5308000790		Bumper, Light Switch				$ 3.86
18	5303208977		Handle-refrigerator Door		Appelez-nous	-
19	5300177142		End- Top Handle		Appelez-nous	-
20	5300179270		Trim-top		Appelez-nous	-
21	5308011745		Screw				$ 10.38
17A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
1A	5315230801		Door Plug-bottom (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
