02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - Ice Door, Dispenser And Water Tank


08 - Ice Dispenser


09 - Ice Maker And Installation Parts


10 - System And Automatic Defrost Parts

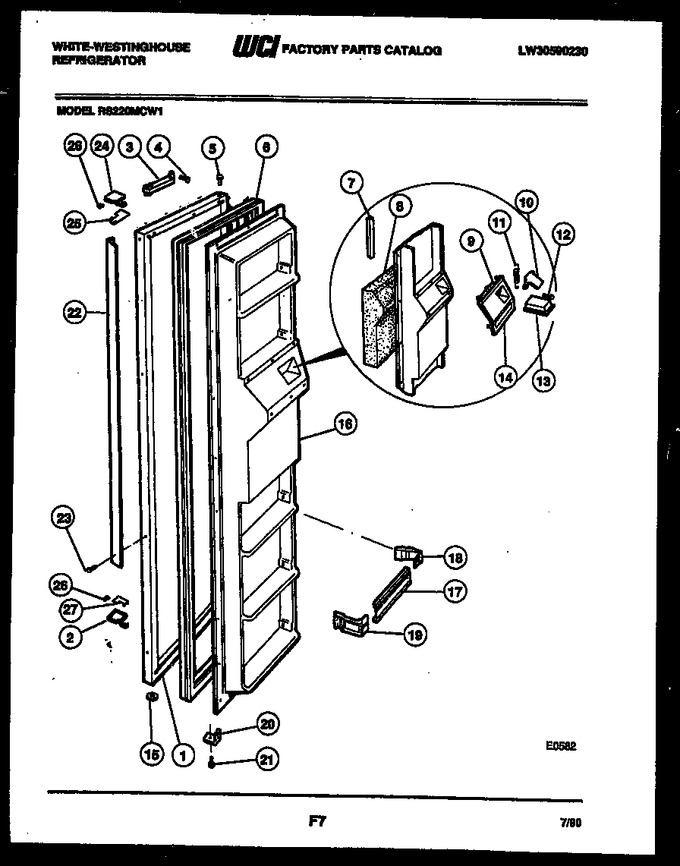

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916721		Freezer Door-wheat		Appelez-nous	-
2	5300177143		End-bottom Handle		Appelez-nous	-
3	5303200272		Closer-door		Appelez-nous	-
4	3001020		Screw - Closer Mounting		Appelez-nous	-
5	5303001022		Bearing-upper Hinge		Appelez-nous	-
6	5303200832		Gasket-freezer Door		Appelez-nous	-
7	5303001046		Shield-wiring		Appelez-nous	-
8	5308015556		Insulation-housing		Appelez-nous	-
9	5303001048		Pin-ice Door Hinge		Appelez-nous	-
10	5303205848		Flipper-ice Door Hinge		Appelez-nous	-
11	5308010300		Spring-flipper				$ 36.91
12	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
13	5303017430		Ice Door		Appelez-nous	-
14	5318124101		Trim Cover-door Panel		Appelez-nous	-
15	5308010308		Bushing-lower Hinge		Appelez-nous	-
16	G183176-01		Panel-inner Door		Appelez-nous	-
17	5303208979		Door Rack (5)		Appelez-nous	-
18	5303204848		Support Rs (5)				$ 35.86
19	5303204849		Support Ls (5)				$ 21.11
20	5308000790		Bumper, Light Switch				$ 3.86
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	5303208977		Handle-freezer Door		Appelez-nous	-
23	5308011745		Screw				$ 10.38
24	5300177142		End- Top Handle		Appelez-nous	-
25	5300179270		Trim-top		Appelez-nous	-
26	5300177144		Clip-handle		Appelez-nous	-
27	5300179271		Trim-bottom		Appelez-nous	-
14A	5308017047		Push Nut (6) (non-illustrated)		Appelez-nous	-
16A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
1A	5315230801		Door Plug-bottom (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
